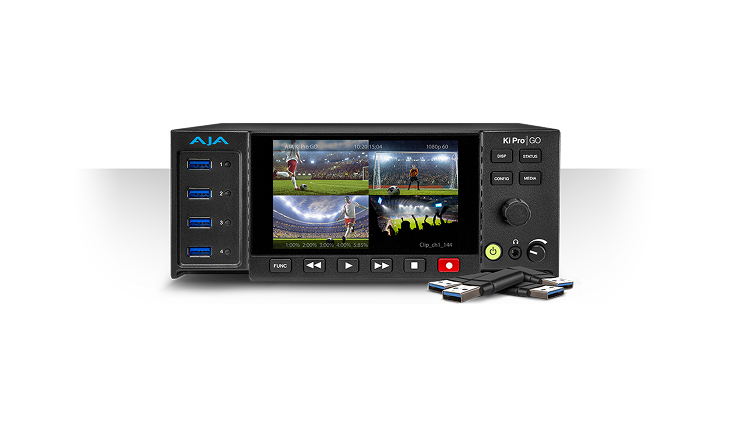

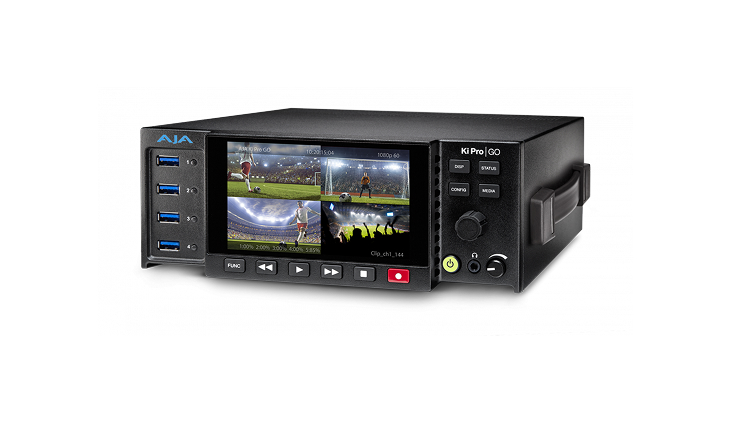

AJA Ki Pro Go

4x HD USB Recorder/Player (H.264)

AJA

Product Highlights

  • 4x 3G-SDI and 4x HDMI inputs with frame syncs
  • On-board screen to monitor 1 or all 4 inputs
  • XLR Audio input without breakouts
  • 5x USB 3 ports for recording and redundancy
Rentex No. XVR1300 | Mfr No. KI PRO GO

Ki Pro GO is a portable multi-channel H.264 recorder offering up to 4-channels of simultaneous HD and SD recording to off the shelf USB drives with redundant recording capabilities.

4x 3G-SDI and 4x HDMI digital video inputs with flexible channel assignments provides connections to the latest video sources, including cameras. Incoming video sources do not have to be genlocked due to Ki Pro GO’s input frame syncs. Ki Pro GO also features AJA’s high quality de-interlacers on each input so progressive recordings can be made from interlaced inputs. High quality 2-channel embedded audio or balanced XLR analog audio can be assigned to any recording channel. Multi-Channel Matrix Monitoring enables multiple video channels to be viewed on any single HDMI display.

  • 4x Certified 256gb USB Drives (XVR1312)

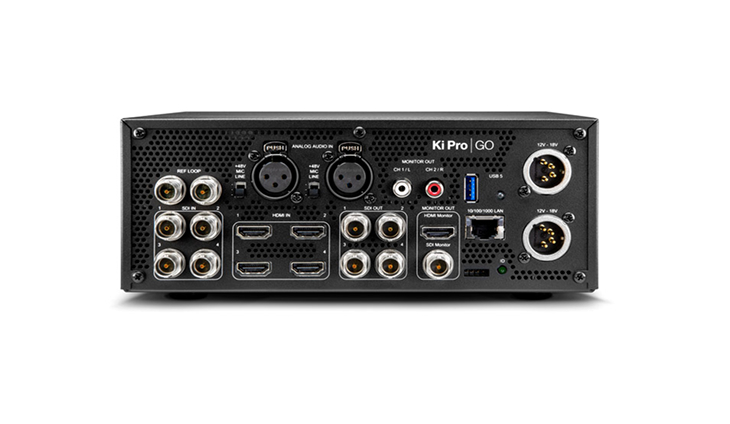

I/O
Video 4 x BNC (3G-SDI) Input
5 x BNC (3G-SDI) Output
4 x HDMI Type A (HDMI 1.4a) Input
1 x HDMI Type A (HDMI 1.4a) Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Audio 2 x XLR Input
2 x RCA Monitor Output
1 x 3.5 mm Headphone Output
Power 2 x 4-Pin XLR Input
Other I/O 1 x LAN (RJ45)
Format Support
Video Format HDMI (8/10-Bit 4:4:4 RGB)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
576i: 50
480i: 59.94
Video Signal Conversion HDMI to SDI
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
Recording
Encoding Formats Up to 1920 x 1080
H.264 8/10-Bit 4:4:4
H.264 8/10/12-Bit 4:2:2
H.264 8-Bit 4:2:0
Maximum Audio Tracks 2
Recording Media 5 x USB Type-A Port (USB 3.1 / USB 3.2 Gen 2)
File System Support exFAT
Reference Input Looping (Non-Terminating), Tri-Level Sync
Timecode Support SDI RP188 / SMPTE 12M via BNC Input
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 to 18 VDC
Operating Current 7.5 A
Power Consumption 55 W (Typical)
Environmental
Operating Altitude 9842′ / 3000 m
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
General
Dimensions (W x H x D) 8.64 x 3.31 x 10.57″ / 219.46 x 84.08 x 268.6 mm
Weight 5.07 lb / 2.3 kg
