Logitech Rally Plus video conferencing system

Auto-Tracking PTZ with 7 distributed mics for large rooms

Product Highlights

  • Auto-Tracking 4K PTZ camera with 260° h x 190° v coverage
  • Dual speakers included for clear, room filling sound
  • 7 beam-forming mic pods with AI backed noise cancellation and voice leveling
  • Table Hub and Display Hub with single cable connection for a clean setup including dual display pass-through
  • Compatible with all major Video Conferencing software with Certifications from Zoom, Teams, Skype for Business, Hangouts, Meet, and Cortana

Logitech Rally Plus is an easy-to-use videoconferencing system that can take the guesswork out of designing for medium to large meeting rooms.

At the heart of the system is the Rally auto-tracking PTZ equipped with a 4k/UHD sensor and 15x optical zoom. RightLight and RightSight technologies combine to automatically frame participants and present them in true to life, flattering and accurate color in a variety of lighting conditions. Auto-tracking may be disabled, and the camera may be controlled by remote or Sync software, with 2 presets available on the remote.

The PTZ is designed for placement near up to 2 in room displays and integrates with the displays and the dual speakers at the Rally Display Hub. These devices are combined to a single link by CAT6a network cable to the Table Hub which also hosts the Mic Pods. Camera and Speakerphone input are provided by USB for use on any video conferencing host computer at the table hub, and 2 HDMI display inputs may pass through the Table Hub, to the Display Hub for use in the room.

Let’s talk about those mic pods – the hardware feeding the RightSound Mic Matrix. Each pod is equipped with 4 microphones providing 8 acoustic zones for beamforming – a total of 56 active zones to lock in on active speakers. Each pod combines background noise suppression, Acoustic Echo Cancellation, and Voice Activity detection while covering a pickup range up to 15ft, with about 6 participants per mic pod and 46 total participants as the recommended maximum. Each Mic Pod has a 9.6ft cable for daisy chaining, and the Rentex included 33ft extension cable can be used at the first pod or between any 2 pods in the run.

  • Rally Display Hub
  • Rally Table Hub
  • 2x Rally Speaker
  • 7x Rally Mic Pod Expansion Microphones
  • 1x Rally Mic Extension (10m/33’)
  • Remote control
  • USB Cables
  • Power adapters

Raising the Bar on Video Meetings | Logitech Rally Bar Mini, Rally Bar, and Rally Plus


RightLight with WDR ·         Low-light compensation

·         Video noise reduction

·         Low-light saturation optimization

·         Renders natural skin tones for each participant on camera

·         Reduces backlighting and glare without darkening the entire image.



·         Human figure detection

·         Auto-frame participants at meeting start

·         Auto-frame participants on-demand

·         Auto-reframe participants during meetings


RightSound ·         Machine learning AI trained to distinguish human speech from other sounds

·         AEC (Acoustic Echo Cancellation)

·         VAD (Voice Activity Detector)

·         Background noise suppression

·         Auto-level loud and soft voices

RightSound Mic Matrix


·         Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction

·         Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker

·         Beam focus refresh rate: 8ms (125 times/second)


Anti-Vibration Suspension

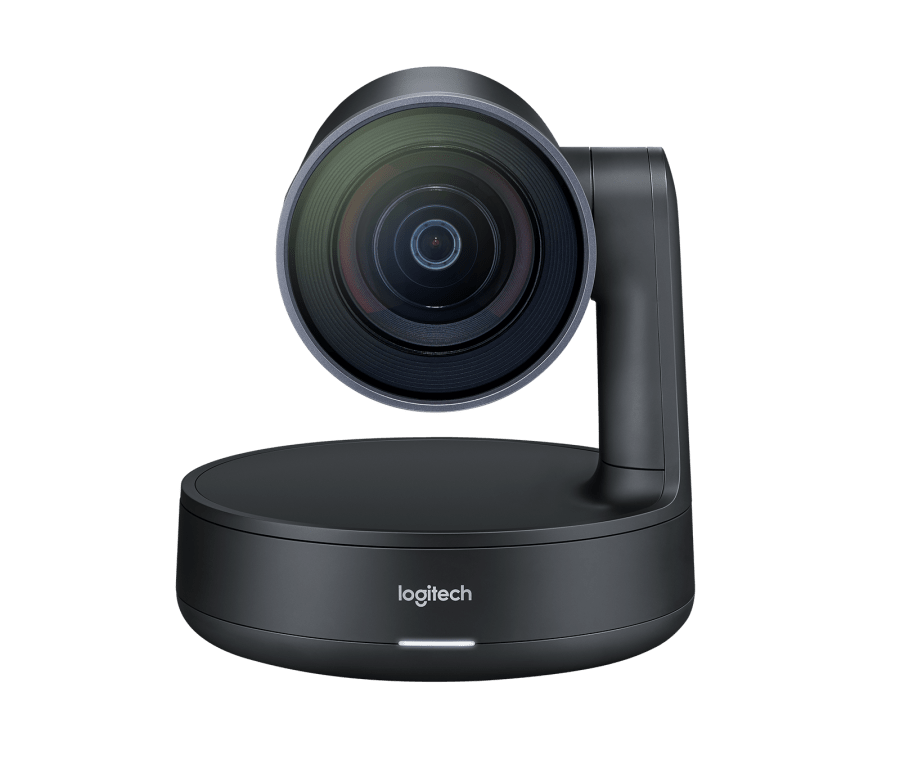

Rally Camera

Zoom: 15x HD zoom (5x optical + 3x digital)
Pan: 180° (±90°)
Tilt: 140° (+50° / -90°)
Field of View ·         Diagonal: 90°

·         Horizontal: 82°

·         Vertical: 52°


Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
Resolutions @ 60fps: 1080p, 720p
RightLight Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
Privacy: Lens parks at -90° in sleep mode for assured privacy

Rally Mic Pod

Pickup Range: 15 ft (4.5 m) diameter
Four omnidirectional microphones forming eight acoustic beams
AEC: Acoustic Echo Cancellation
VAD: Voice Activity Detector
Background noise suppression
Mute button with LED status indicator
Captive 9.6 ft (2.95m) 12-pin cable
Daisy chain up to 7 Rally Mic Pods
Frequency response: 90Hz – 16kHz
Sensitivity: >-27 dB +/-1dB @ 1Pa
Microphone data rate: 48 kHz
Recommended # of participants ·         Rally (one Mic Pod): 16

·         Rally Plus (two Mic Pods): 16

·         Additional participants per Mic Pod: 6

·         Recommended participants for Rally with 7 Mic Pods: 46

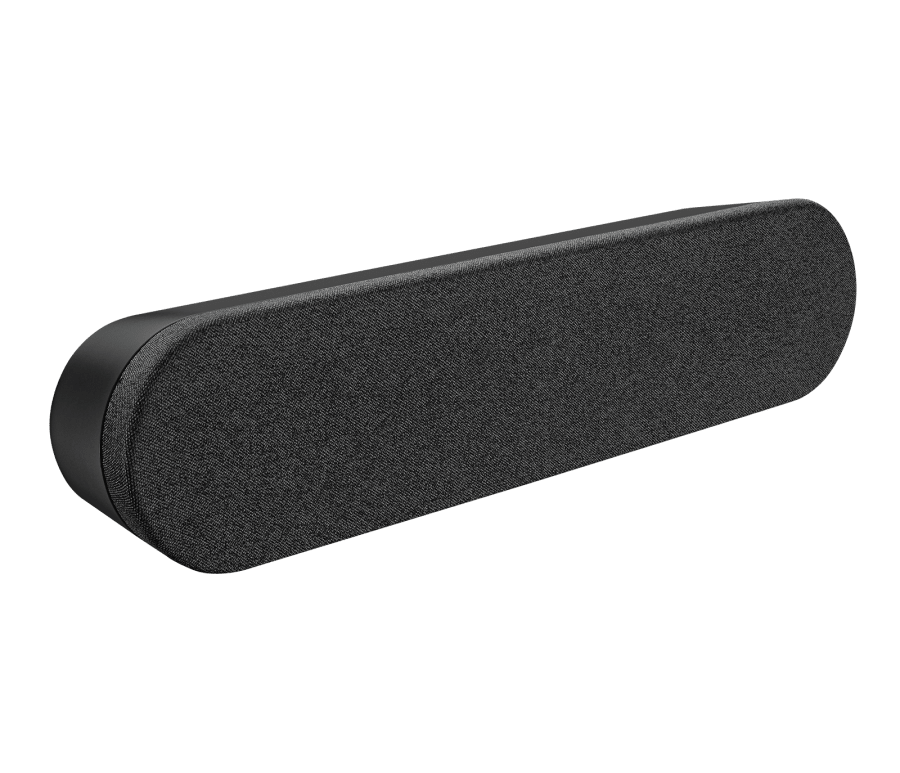

Rally Speaker

High-performance 3″ (76mm) driver with rare-earth magnet

Patent-pending suspension system eliminates vibration-induced camera shake and audio interference

Mini XLR cable connects to Rally Display Hub for both signal and power
Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
Sensitivity: 95+/-2 dB SPL at ½ meter
Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
Sampling rate: 48 kHz

Rally Table Hub

Single CAT6A cable connection to Rally Display Hub (16.4 ft / 5m cable included, supports customer-supplied cables up to 164 ft (50 m)

Hub 5 m cable included, supports customer-supplied cables up to 50 m

Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
12 Pin connector for Rally Mic Pod
HDMI Type A passthrough to Display Hub (x2)
USB Type C
USB Type A (reserved for future capability)
USB Type B (connects to meeting room computer)
RJ45 (reserved for future capability)
Power input

Rally Display Hub

  • HDMI Type A: (x2) (connects to displays)

  • USB C (connects to Rally Camera)
  • USB Type B (connects to meeting room computer)

  • RJ45: connects to Table Hub

  • Mini XLR: x2

  • Powers one or two Rally Speakers

  • Power input


Remote Control

  •             RF remote control (line of sight not required)

  • CR2032 batteries (included)


Cables / Power

Camera to Display Hub ·         6.5 ft (2m) USB 3.1 Type C to USB Type C 3.1
Conference Room Computer to Display or Table Hub ·         ft (2m) USB 3.1 Type A to USB Type B
Display Hub to Table Hub ·         16.4 ft (5 m) CAT6A Ethernet cable (supports customer-supplied cables up to 164 ft (50 m)
Display Hub to Speaker (x2) ·         9.6 ft (2.95 m) Mini XLR (supports customer-supplied extension cables up to 9.8 ft (3 m)
Conference Room Computer to Displays (x2) ·         ft (2m) HDMI A
Mic Pod ·         9.6 ft (2.95m): Hardwired with 12 pin connector
Power Outlets to Power Supplies (x2): 3.28 gy (1 m) ·         3.2 ft (1 m)
Power Supplies to Table Hub / Display Hub (x2) ·         4.9 ft (1.5 m)
