Product Highlights
- Art-Net, sACN, KiNET RTTRPL support
- Bi-directional DMX RDM Capability
- Advanced networking capabilities
Overview

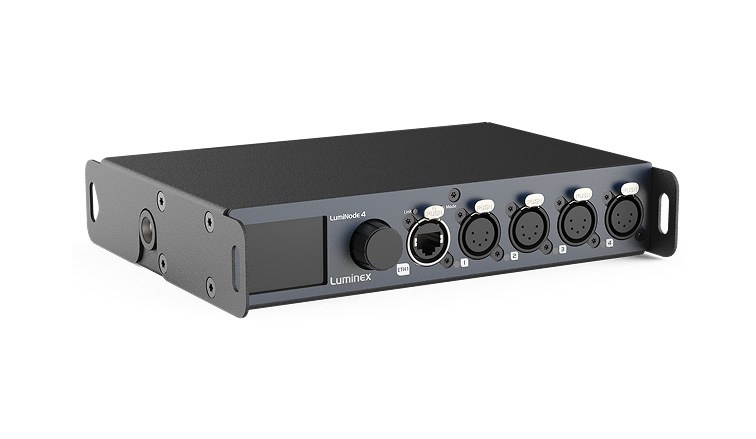

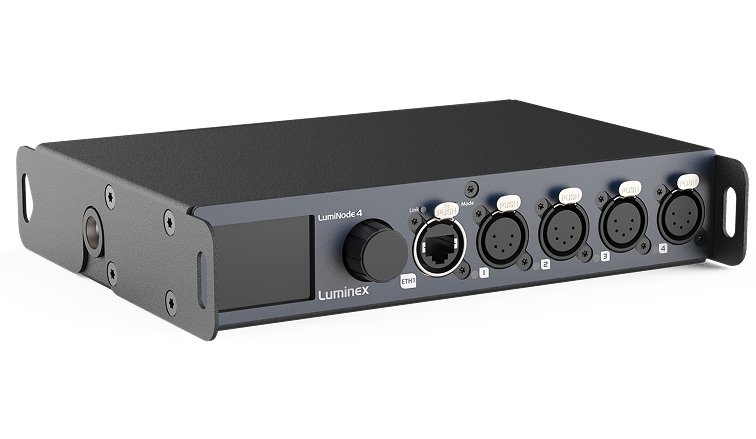

LumiNode 4 is a rugged, half-19-inch Ethernet/DMX node that allows you to send dmx over ethernet via SACN or ArtNet to your 5 pin DMX Devices.

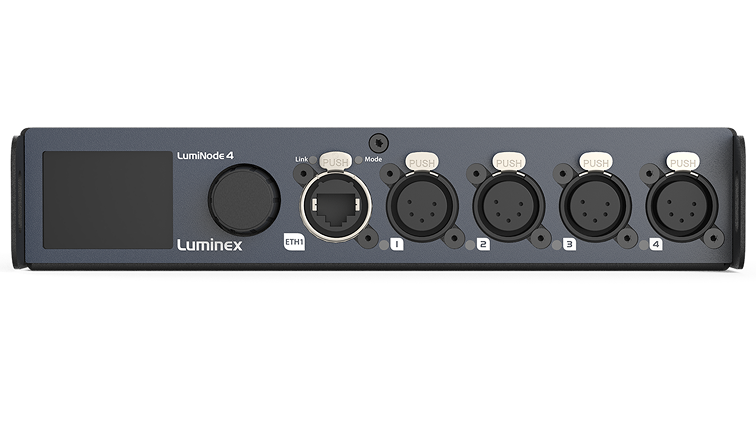

LumiNode 4 is specifically designed with an all metal, robust enclosure for rack mounting or truss mounting, making it an ideal solution for touring, theatre- and studio AV installs or for use at live performances. Equipped with 2x 1Gb Ethercon ports and 4x 5-pin DMX ports LumiNode 4 offers flexibility in a half 19″ package. The M10 Insert and protection ears are specialy placed to mount the unit safely to any lighting structure. Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
LumiNode 4 is specifically designed with an all metal, robust enclosure for rack mounting or truss mounting, making it an ideal solution for touring, theatre- and studio AV installs or for use at live performances. Equipped with 2x 1Gb Ethercon ports and 4x 5-pin DMX ports LumiNode 4 offers flexibility in a half 19″ package. The M10 Insert and protection ears are specialy placed to mount the unit safely to any lighting structure. Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
What's in the Case?
- Luminex Luminode 4
- Slim Cheese
Specifications
| CONNECTIVITY | |
| DMX/RDM | 4x shielded & gold plated Neutrik 5-pin XLR (female) |

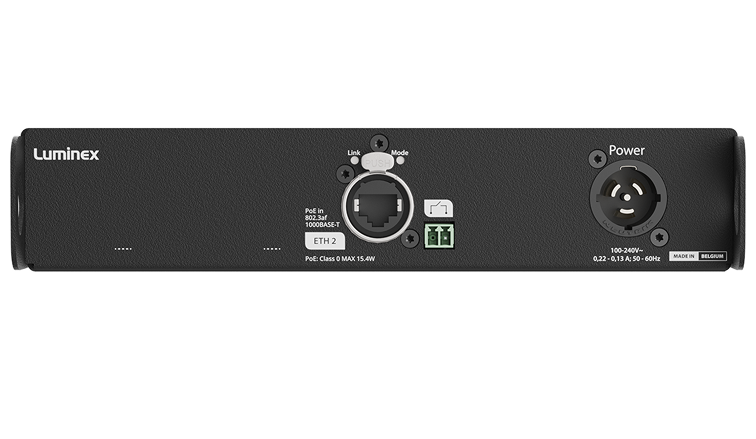

| Network | 1x gigabit shielded Neutrik etherCON connector Front panel 1x gigabit RJ45 connector Rear panel PoE-802.3af |
| Contact Closure | 1x 2-pin pluggable terminal block |
| Power | 1x Neutrik powerCON TRUE1 Ethernet (PoE 802.3af class 0) |
| DMX FEATURES | |
| Supported protocols | DMX512 (1986 & 1990) DMX512-A RDM ANSI E1.20-2010 |
| DMX port direction | Input or output (configurable) |
| DMX port isolation | Optical and galvanic isolation per port |
| DMX timing | Framerate: 10-40fps Break: 176-352µs |
| ETHERNET FEATURES | |
| Supported protocols | Art-Net™ (1-4) sACN ANSI E1.31-2018 RTTrPL (BlackTraX) KiNET v1, v2 |
| Port speed | 10/100/1000Mbps |
| Port sensing | Auto-negotiation MDI / MDIX |
| Split management interface | Yes |
| Groups (VLAN) support | No |
| ADDITIONAL FEATURES | |
| Processing engine | 6 |
| Merging | Yes (HTP, LTP, X-Fade, Backup, Switch, Custom) |
| Softpatch | Yes |
| Master/Limit | Yes |
| Trigger system | Yes |
| Reroute function | Yes |
| Profile manager | Yes |
| Snapshot | Yes |
| Monitoring Software | LumiNet Monitor, Araneo |
| DMX redundancy | Yes |
| STATUS REPORTING | |
| Display & jog | Yes |
| Ethernet port connection | Link/activity LED Group RGB LED |
| DMX port | DMX/RDM RGB LED |
| POWER / PoE | |
| Power input | 100-240VAC 50-60Hz PoE-802.3af (Class 0) |
| Power consumption | Max 13W |
| Power redundancy | Yes |
