Product Highlights
- Wireless DMX transceiver using LumenRadio’s own CRMX wireless technology
- RDM controller for configuring fixtures directly from the CRMX Toolbox app
- DMX testing
- External power and charging via USB-C
- Simple user interface
Overview

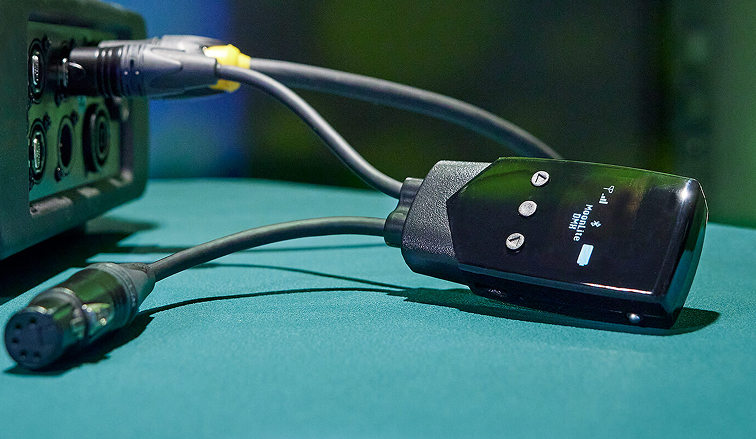

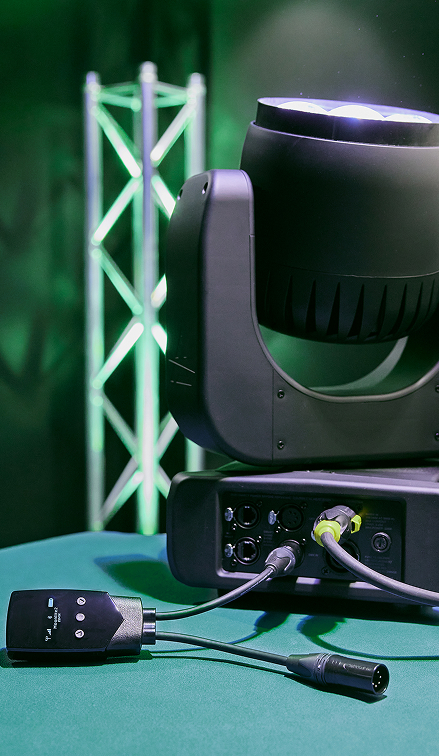

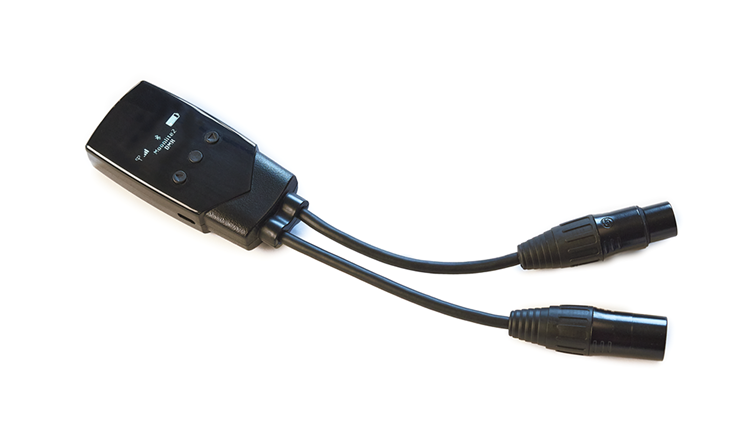

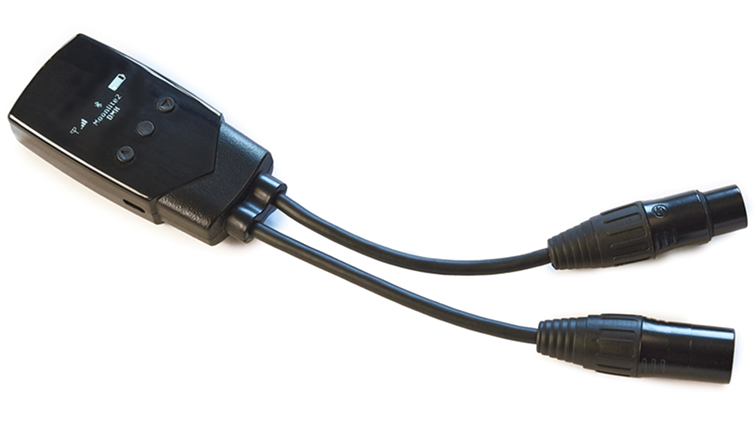

As a wireless DMX/RDM transmitter and receiver, MoonLite² is capable of transmitting and receiving both CRMX and W-DMX, and is compatible with almost all wireless DMX fixtures. Its built-in battery and dual XLR connectors make it perfect wherever wireless DMX connectivity is needed – from stage events and theaters to night clubs and temporary events.
Specifications
| SUPPORTED PROTOCOLS | |
| Receiver mode | CRMX Classic, CRMX2, W-DMX G3, G4, G4S and G5 |
| Transmitter mode | CRMX Classic, W-DMX G3 and G4S |
| Bluetooth | 5.0 |
| Compatibility | Compatible with all CRMX products |
| RF CHARACTERISTICS | |
| Operational frequency range | 2402-2480 MHz |
| Output power levels | 7mW, 30mW, 100mW, 280mW |
| CONNECTORS | |
| DMX | Male and female 5-pin XLRs |
| Antenna | Internal |
| DC | USB-C |
Technical Documentation
MoonLite² CRMX transceiver
Portable, rechargeable, wireless DMX with Bluetooth
- Rentex No. 800-2213
- Mfr No. 800-2213
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
