Product Highlights
- 4K resolution with 500-nit brightness
- 24/7 operation
- Built in media player
Overview

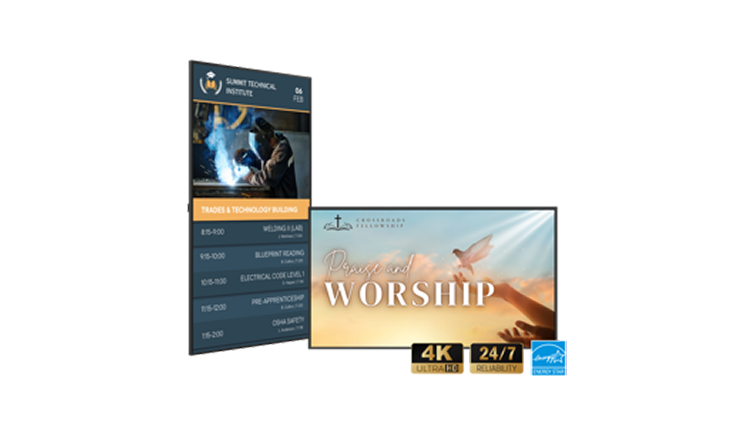

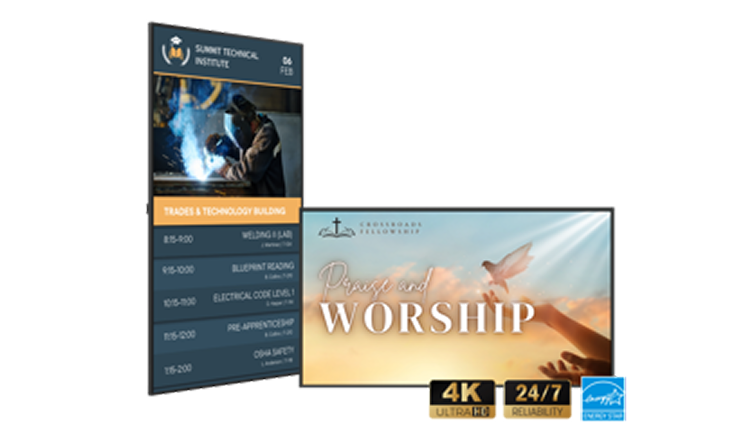

The Planar® Simplicity™ E Series SLE43 is an 43″ 4K LCD display for digital signage applications that integrates wireless connectivity, media playback, 4K @ 60Hz support, HDCP 2.2 compliance and commercial functionality into a cost-effective digital signage display solution.
What's in the Case?
- (1) SLE43 display
- (1) Remote control
- (1) MS1 wall mount with hardware
- (1) Power cable
Specifications
| Specs | Spec Value |
|---|---|
| Product Name | SLE43 |
| Planar Part Number | 998-4685-00 |
| Display Resolution | Ultra HD (3840 x 2160) |
| Screen Size | 43in (diagonal) |
| Aspect Ratio | 16:9 |
| Display Technology | Direct-lit LED LCD |
| Haze | 25% |
| Surface Treatment | AG Hard Coating (3H) |
| Display Active Area | 941.2mm x 529.4mm | 37.1″ x 20.8″ |
| Viewing Angle (typ) | 178° |
| Backlight | LED |
| Backlight life (1/2 brightness) | 50000 hrs (typ) |
| Brightness (typ) | 500 nits |
| Response Time (typ) | 8 ms |
| Frame Rate | 60Hz |
| Contrast Ratio (typ) | 4000:1 |
| Pixel Pitch | 0.245mm |
| Color Gamut | DCI-P3 90% |
| Display Color | >1 billion colors. Full 10 bit data path |
| External Connections | HDMI® x 3 (HDCP 2.3/1.4, ARC, eARC), Wi-Fi 5 (801.11 b/g/n, 2.4 GHz), BlueTooth 5.0 USB 3.0 x1, USB 2.0 x1 |
| Wi-Fi | Yes. Wi-Fi 5 (802.11 b/g/n, 2.4 GHz). Built-in antenna |
| BlueTooth | Yes. 5.0 |
| Modes | 3840×2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz |
| Display Control | IR, RS-232, LAN, HDMI-CEC |
| Dimensions (W x H x D) | 971.0mm x 560.0mm x 70.0mm | 38.2″ x 22.0″ x 2.8″ |
| Installed Depth with Included Wall Mount | 100mm | 3.9″ |
| Orientation | Landscape/Portrait |
| Bezel Width | 12.8mm | 0.5″ |
| Display Edge to Active Area | 14.7mm | 0.6″ left and right, 14.9mm | 0.6″ top and bottom |
| Weight | 8 kg | 17.6 lbs |
| Weight (Shipping) | 11.5 kg | 25.4 lbs |
| Audio Output | Audio Line Out, HDMI ARC, HDMI eARC |
| Speakers | 10W x 2 built-in |
| Enclosure | Plastic bezel and back cover |
| Mounting | Wall mount included. VESA: 300mm x 300mm |
| Fanless | Yes |
| Line Voltage | 100-240V; 50/60Hz |
| Power Consumption (typ) | 89W (standby: <0.5W) |
| Operating Temperature | 0° to +40°C | 32° to 104°F |
| Humidity | 20 – 80% RH (non-condensing) |
