Product Highlights
- Uncompressed Video & Audio Transmission
- The Antenna Array is available to rent seperately
- Supports Resolutions up to 1080p60
- 1000′ Distance (line of sight) with <1 ms Latency
- 3G-SDI/HDMI Inputs and Outputs
Overview

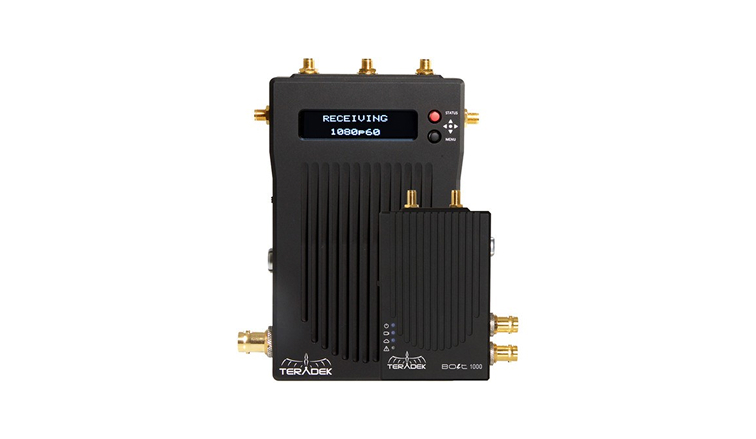

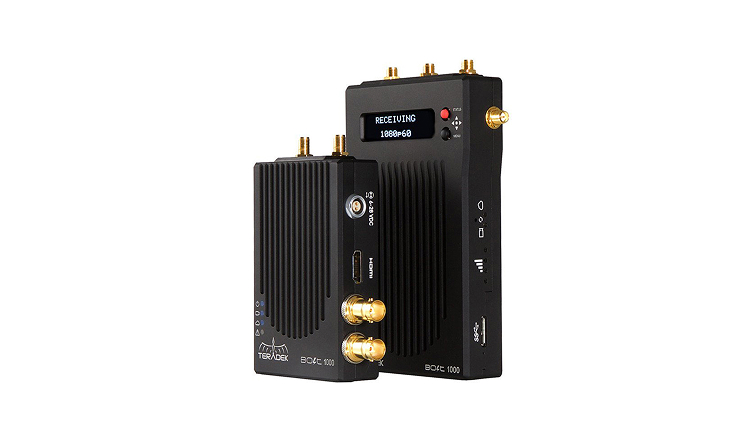

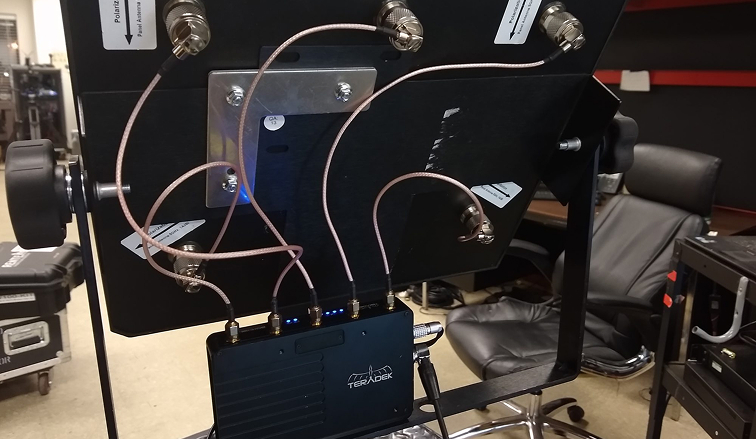

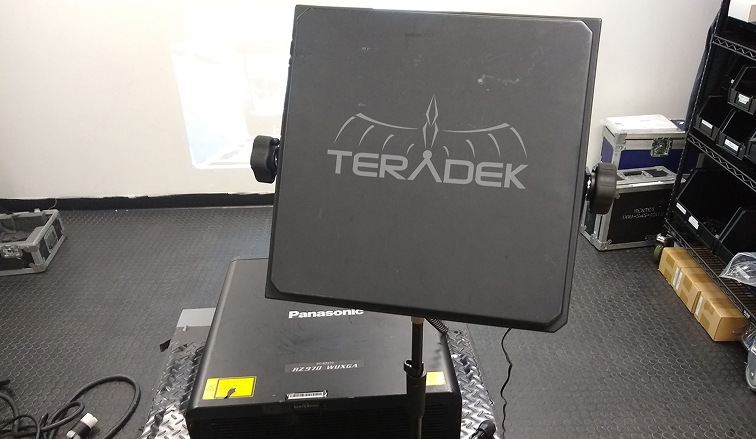

The Bolt 1000 Deluxe Kit has everything you need to get up and running with Bolt. It comes with a Bolt 1000 Transmitter and Receiver set, a Dual Battery Mount plate for the Receiver, that can all fit with the included SKB Utility Case. Please note: the Antenna Array is available to rent separately. The Panel Array Antenna is your go-to solution for cutting through wireless interference in crowded environments.
What's in the Case?

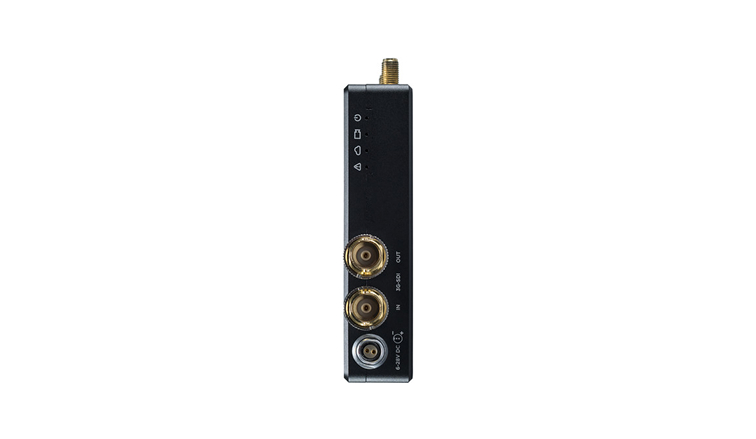

- (1) TERADEK BOLT 1000 TRANSMITTER
- (1) TERADEK BOLT 1000 RECEIVER
Specifications
| Specs | Value |
|---|---|
| Transmitter | |
| Video Input |
1× 3G/HD/SD-SDI (BNC, 75Ω) 1× HDMI |
| Video Output | 1× 3G/HD/SD-SDI (BNC, loop-through) |
| Channels |
20 MHz: 24 DFS channels 40 MHz: 11 DFS channels (USA) (200 MHz channels do not support interlaced/PsF/1080p60/50) |
| Latency | < 0.001 sec |
| RF Power | 17 dBm EIRP (2 × 2 dBi antennas) |
| Audio | 48 kHz, 24-bit PCM |
| Mounting | 1/4″-20 threaded mount |
| Dimensions | 0.9 × 2.6 × 4.0″ |
| Weight | 8 oz (226.8 g) |
| Power |
7–28 VDC 7.5 W 2-pin LEMO connector |
| Receiver | |
| Video Output |
1× 3G/HD/SD-SDI (BNC, 75Ω) 1× HDMI 1× Micro-USB 3.0 |
| Latency | < 0.001 sec |
| RF Power | 17 dBm EIRP (1 × 2 dBi antenna) |
| Audio | 48 kHz, 24-bit PCM |
| Dimensions | 5.5 × 3.5 × 0.9″ |
| Weight | 13.3 oz (376 g) |
Technical Documentation
Teradek Bolt 1000
Deluxe Kit Wireless Receiver Set
- Rentex No. WVTBLT3PK
- Mfr No. 10-0965-1G
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
