Product Highlights
- 1-in / 6-out balanced line-level splitter for distributing one source to multiple destinations.
- Passive, no power required — simple, reliable parallel splitting with minimal signal alteration.
- Rugged XLR construction for live and install use — ideal for extra amplifiers, powered speakers, or intercom lines.
Overview
Specifications
| Specs | Value |
|---|---|
| Function | 1 female XLR input wired to 6 male XLR outputs (parallel line-level splitting). |
| Signal Type | Line level (balanced). |
| Power | Passive — no external power required. |
| Recommended Use | Adding extra amplifiers, connecting multiple powered speakers, splitting intercom or line signals. |
| Microphone Use Note | Not recommended to split microphone-level signals to more than two outputs; doing so may cause reduced level and poor frequency response. |
| Connectors | 1 × XLR female input; 6 × XLR male outputs (balanced). |
| Construction | Roadworthy metal enclosure designed for stage and install environments. |
| Typical Performance Note | Line-level outputs can usually be split up to six times without noticeable loss, but actual results depend on source level and load impedances. |
Technical Documentation

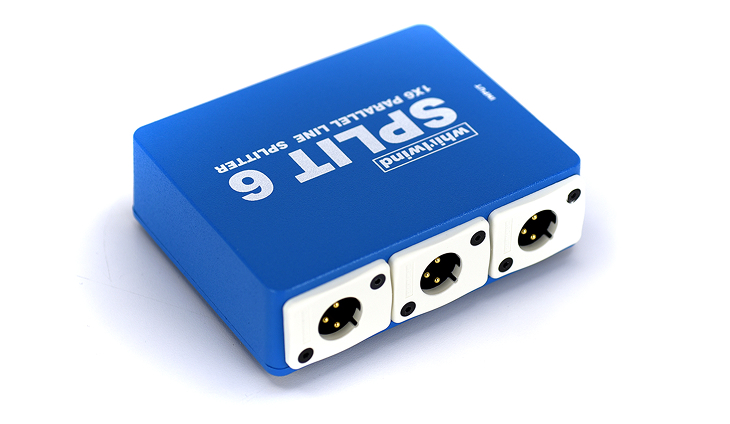

Whirlwind SPLIT6
1x6 Line Splitter
- Rentex No. WWSPLIT6
- Mfr No.
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
