UniFi Enterprise Mesh PRO Access Point

Wide-Area 802.11ac Outdoor Wi-Fi Access Point

Ubiquiti Networks

Product Highlights

  • (3) Internal Dual-Band Antennas (8 dBi gain) and (2) 10/100/1000 Mbps RJ45 Ethernet ports
  • 802.11 a/b/g/n/r/k/v/ac Wi-Fi standards
  • Wireless Security: WEP, WPA-SK, WPA-Enterprise (WPA/WPA2/TKIP/AES)
  • Supports PoE+ IEEE 802.3af
  • Maximum Power Consumption: 9W and Maximum TX Power: 22 dBm
Rentex No. UBQMESHPRO | Mfr No. UAP-AC-M-PRO-US

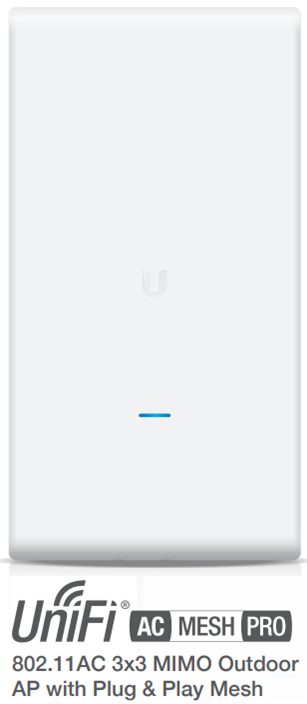

The Ubiquiti Unifi Mesh PRO Access Point is an 802.11ac 3×3 MIMO Outdoor Wireless Access Point with Mesh technology. It features three built-in Omni-directional antennas for long-range communications, and supports both 2.4 GHz and 5 GHz radio bands with speeds up to 1300 Mb/s.

Intended for use in indoors or outdoor settings that require long-range coverage. This product is designed to withstand the elements, making it ideal for providing Wireless coverage to large outdoor events, parks, ranches, and open areas with minimal infrastructure.

The Ubiquiti Mesh PRO Access Point is 802.3af PoE compliant, and contains 2 Gigabit Ethernet ports for easy expansion.

  • UniFi Cloud Key Gen 2 – Management Controller (XCN4300)
  • UniFi 8-Port PoE Switch (XCN4110)
  • UniFi 16-Port PoE Switch (XCN4100)
  • UniFi Security Gateway (XCN4000)
Dimensions 13.51 x 7.13 x 2.37″
Weight 1.40 lb
Networking Interface (2) 10/100/1000 Ethernet Ports
Ports (2) 10/100/1000 Ethernet
Buttons Reset
Antennas 3 Dualband antennas
Wi-Fi Standards 802.11a/b/g/n/ac
Power Method 802.3af PoE
Power Supply PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption 9W
Max TX Power 22 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Pole (Pole Kit Included)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
