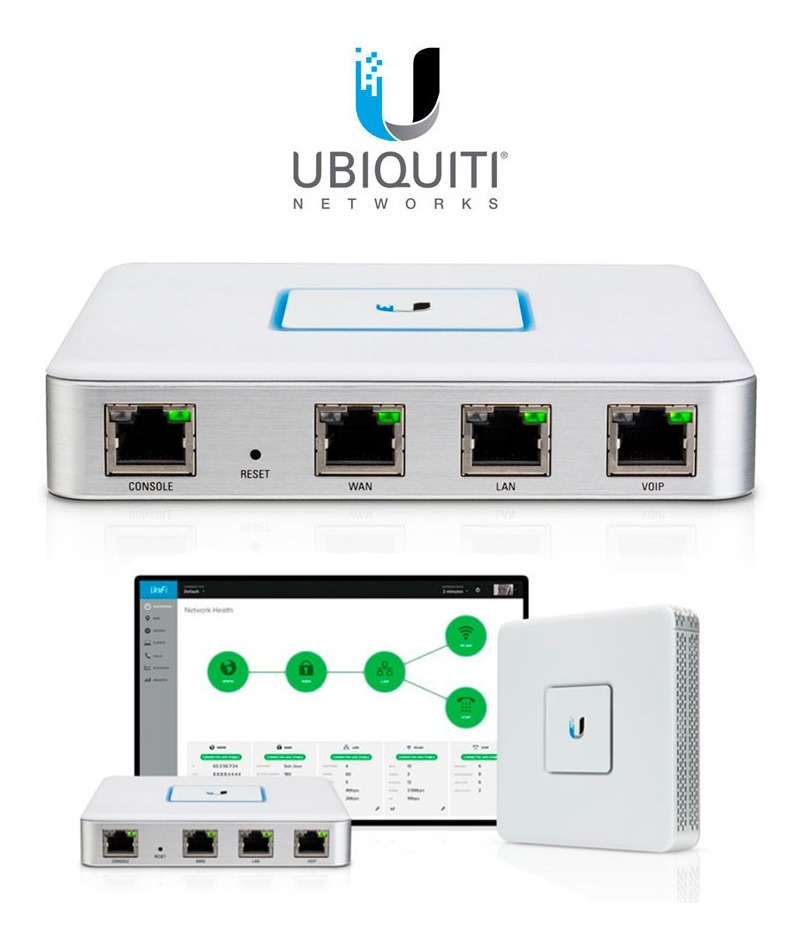

UniFi Security Gateway (USG)

Enterprise Gateway Router with Gigabit Ethernet

Ubiquiti Networks

Product Highlights

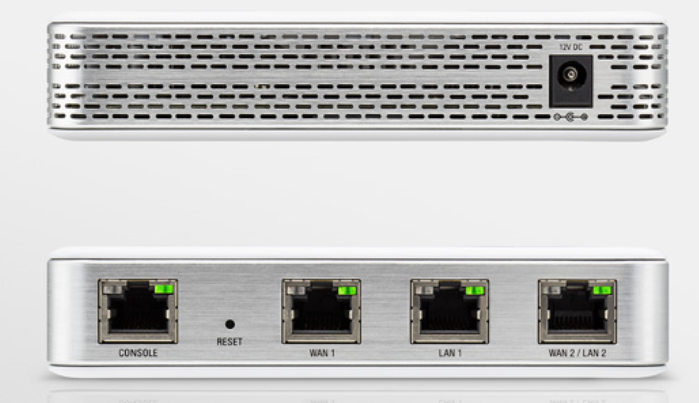

  • (2) WAN 10/100/1000 RJ45 WAN ports, (2) LAN 10/100/1000 RJ45 LAN ports, and (1) RJ45 Serial console port
  • Powerful enterprise-grade Firewall
  • VLAN Support
  • Quality-of-Service for VoIP and Video
  • Intrusion Detection System and Prevention Detection System
Rentex No. UBQUSG | Mfr No. USG

The Ubiquiti Unifi Security Gateway is a highly customizable cloud-based managed Enterprise Router & Gateway. It offers advanced Firewall policies, Intrusion Detection and Prevention (IDS/IPS) to protect your network and its data. The USG is capable of level-3 switching with a 3Gbps maximum forwarding performance, and is equipped with 2-WAN uplink ports for fail-over networks.
Intended for use in most network scenarios, from small training sessions to mid-sized corporate events, or large concerts that requires high bandwidth throughput and scalability. It can also create virtual network segments for security and network traffic management. A site-to-site VPN secures and encrypts data communications traveling over the Internet.
The Ubiquiti UniFi Security Gateway is wall-mountable, and packs a 500 MHz dual-core processor for standard hardware-accelerated performance.

  • UniFi Cloud Key Gen 2 – Management Controller – FA# XCN4300
Dimensions 5.32 x 5.32 x 1.11″
Weight 12.9 oz
Networking Interfaces
Serial Console Port (1) RJ45 Serial Port
Data Ports (3) 10/100/1000 Ethernet Ports
Max. Power Consumption 7W
Power Supply 12VDC, 1A Power Adapter (Included)
Supported Voltage Range 9 to 24VDC
LEDs
System Status
Serial Console Port Power
Data Ports Speed/Link/Activity
Layer 3 Forwarding Performance
Packet Size: 64 Bytes 1,000,000 pps
Packet Size: 512 Bytes or Larger 3 Gbps (Line Rate)
Processor Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory 512 MB DDR2 RAM
On-Board Flash Storage 2 GB
Rackmount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
