Product Highlights
- Compact and Lightweight - 42.8 lbs
- Ample Bus Capacity: 16 MIX, 8 MATRIX, and STEREO
- Virtual Rack with Top-quality Effects
- Multiple Fader Functions
- Intuitive Interface
Overview
Made for portable live sound, Yamaha Commercial Audio LS9 consoles pack a staggering amount of production power in a surprisingly simple and perfectly portable package. This 64-channel LS9-32, with its extended fader bank and 32 mic/line inputs, weighs under 43 lbs. And when you consider the ample routing options, multimode faders, extensive onboard processing, and remote-control options below its refreshingly intuitive interface, you’ll never look at sound reinforcement the same way again.
Specifications
| Type | Digital | |
| Channels | 64 | |
| Inputs – Mic Preamps | 32 x XLR | |
| Phantom Power | 32 x Channels | |
| Inputs – Digital | 1 x MIDI, 1 x Coax, 1 x BNC (Clock) | |
| Outputs – Digital | 1 x MIDI, 1 x Coax, 1 x BNC (Clock) | |
| Outputs – Main | 16 x XLR (Omni) | |
| Data I/O | Ethernet, 1 x USB Type A | |
| I/O Expansion Slots | 2 x Slots | |
| Headphones | 1 x 1/4″ | |
| Faders | 33 x 100mm Throw | |
| Effects | Yes | |
| Talkback | Yes | |
| Rackmountable | Yes | |
| Height | 8.6875″ | |
| Depth | 19.6875″ | |
| Width | 34.8125″ | |
| Weight | 42.8 lbs. | |
| Manufacturer Part Number | LS9-32 |
Technical Documentation

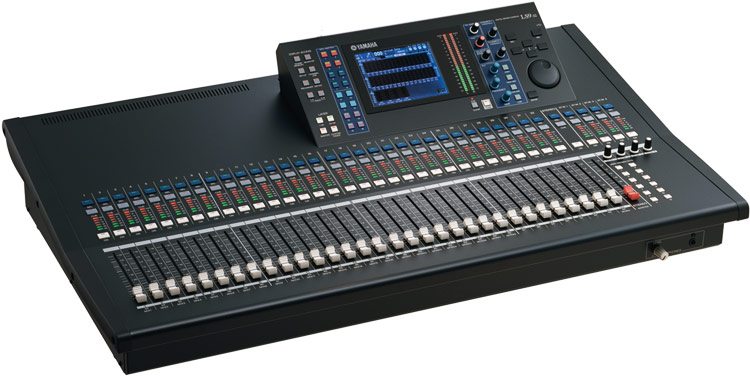

Yamaha LS9-32
64-Channel Digital Mixing Console
- Rentex No. YHLS932
- Mfr No. LS9-32
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
