Product Highlights

Record all 8 inputs as well as program feed to USB – up to 9 feeds total: USB-C connector. USB-C to USB-A female adapter provided in kit
Stream directly by Ethernet to RTMP services, default Youtube, Facebook, Twitch: Others added by XML file
Connect by USB as a webcam capture device, simple streaming to Video conference systems like Zoom, WebEx, Teams: USB-C and USB-A cables provided in the kit
2x HDMI outputs for Multiview, program, or isolated view of an input
Embedded audio and 2x 1/8” jacks can be mixed and DSP’d in the control software

Overview

A double-dose of the ATEM Mini Pro, the ATEM Mini Extreme ISO allows for simultaneous recording of up to 8 inputs plus a switched program view. This compact switcher gives you options to switch in room and hybrid events. Stream directly to any common CDN by RTMP using the Ethernet port. Connect the USB-C as a webcam for use in virtually any videoconferencing platform with no special software. Multiview everything and send your program or any source on the two HDMI Outputs. 4 Chroma/Luma keyers are more useful than before with the new select bus, and robust audio DSP are available via the control software.

What's in the Case?

Power Supply
USB-C Cable
USB-C to A cable
USB-C to USB-A (F) Adapter

Specifications

Total Video Inputs

8

Total Outputs

2

Total Aux Outputs

1

Total Audio Inputs

2 x 3.5mm stereo mini jack (no phantom power)

Total Audio Outputs

Embedded audio only.

Timecode Connection

None, Generated only (Sync to Time of Day by default.)

HDMI Video Inputs

8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio per input

Video Input Re-Sync

On all HDMI inputs.

Frame Rate and Format Converters

On all HDMI inputs.

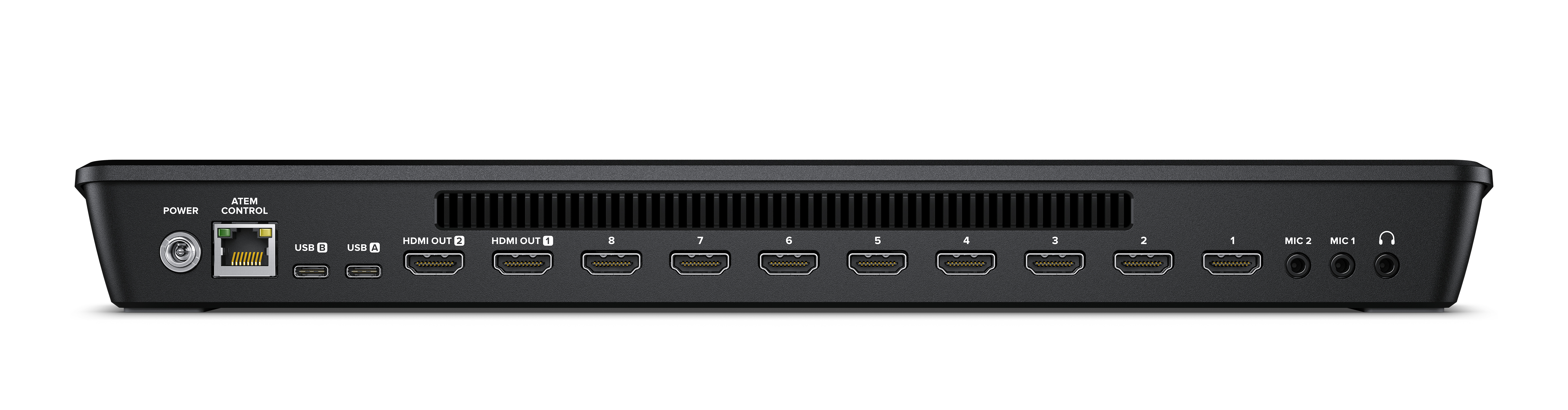

HDMI Outputs

2, Use for Multiview, Program, Aux

Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface

2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Technical Documentation

PDF Blackmagic Design ATEM Mini Extreme ISO Manual from Rentex

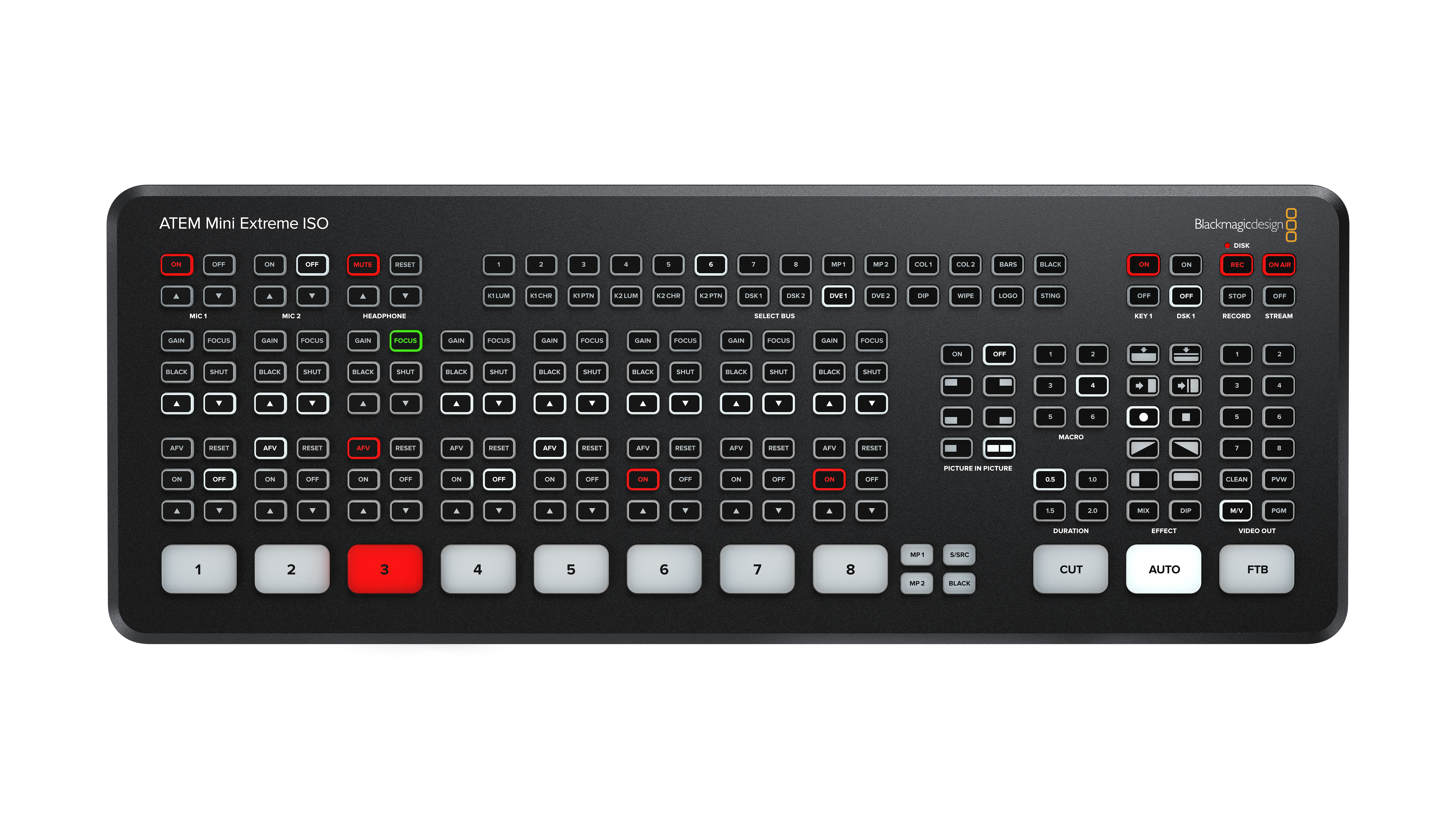

Blackmagic Design ATEM Mini Extreme ISO

8x2 Streaming Switcher with Webcam Function and ISO Recording

Rentex No. STRATEMXI
Mfr No. ATEM Mini Extreme ISO

Available for same-day delivery in most major cities
Item is show-ready, double-tested for functionality
Accessories included, matched to the main unit
