Product Highlights
- 8x SDI BNCs supporting up to 8 3G-SDI FHD inputs
- The 4 lower BNCs will support 12G-SDI 4K/UHD signals (Max 4 at 4k)
- Modular card available for use in any Aquilon system
Overview

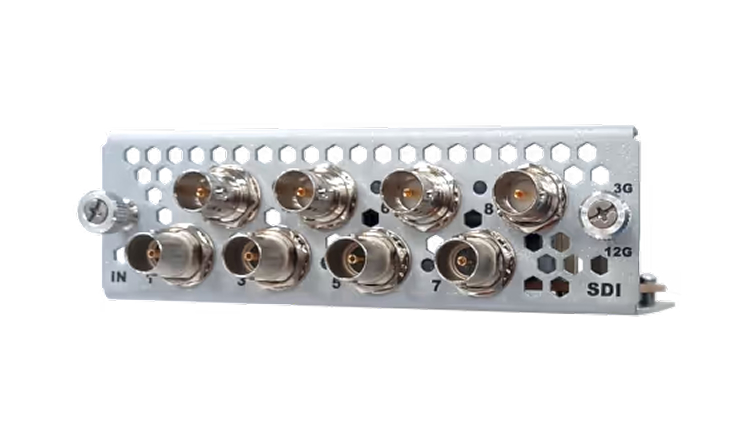

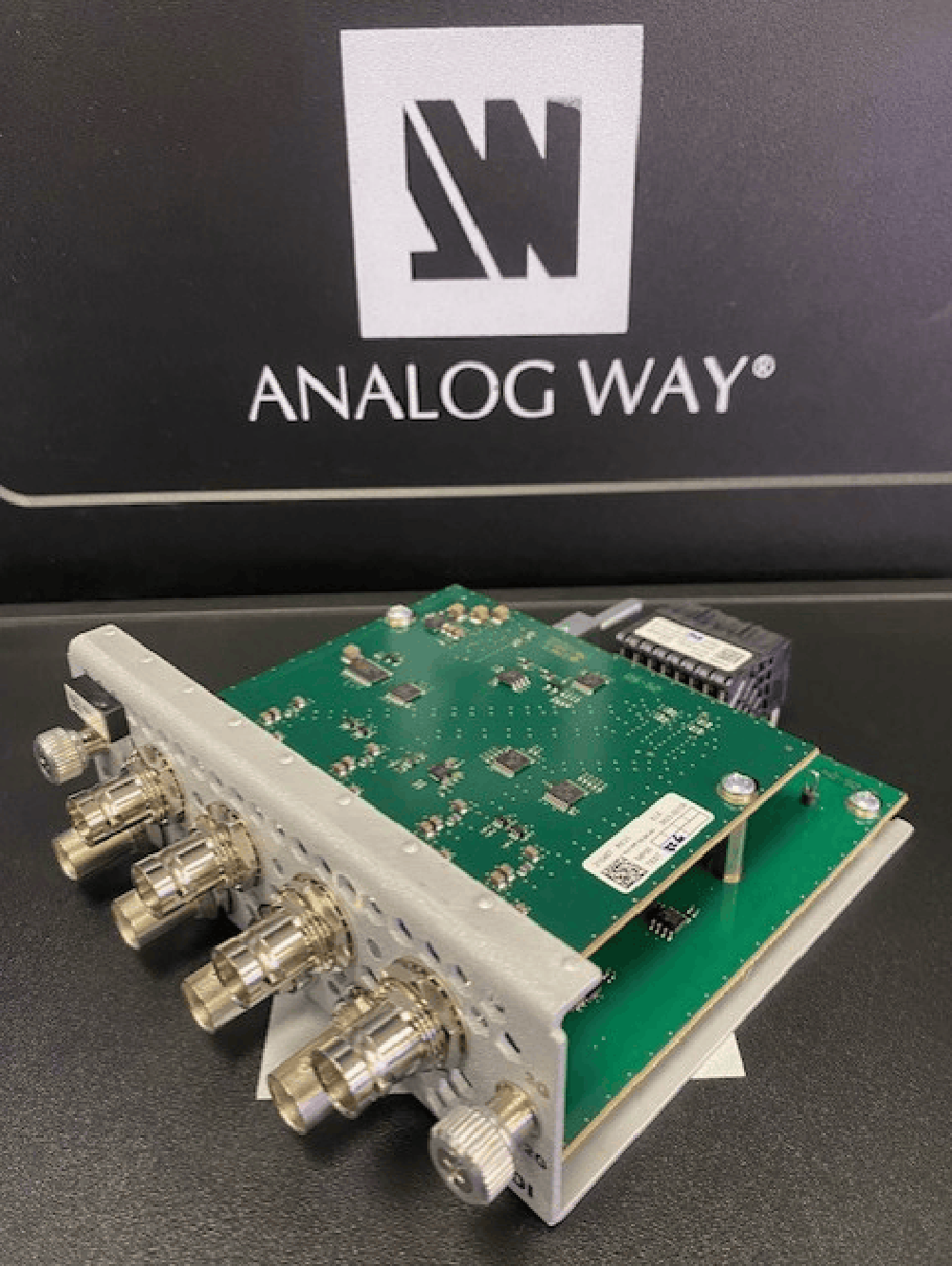

The Analog Way ACC-AQL-IN-SDI-3G is a field-swappable input card with eight SDI ports, designed to work with any LivePremier™ live presentation switcher. These ports can be configured either as four 12G-SDI ports or as eight 3G-SDI ports or as a mix of them. In 12G-SDI mode, each input port supports standard video formats up to 4K60 10-bit 4:2:2. In 3G-SDI mode, each input port supports standard video formats up to 2K60 10-bit 4:2:2. The card supports up to 4 embedded audio channels per input.
Technical Documentation
Analog Way Add On: Aquilon 8x 3G/12G-SDI input card
High density SDI Input card for LivePremier
- Rentex No. LPSDII8XA
- Mfr No.
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
