Product Highlights

High-performance, high-density system solution in a truck-pack friendly format
High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
Built-in, passively cooled Class D amplification with a universal power supply
Dual Ethernet ports with Neutrik etherCON connectors
Supports HARMAN HControl Ethernet & User-controllable DSP

Overview

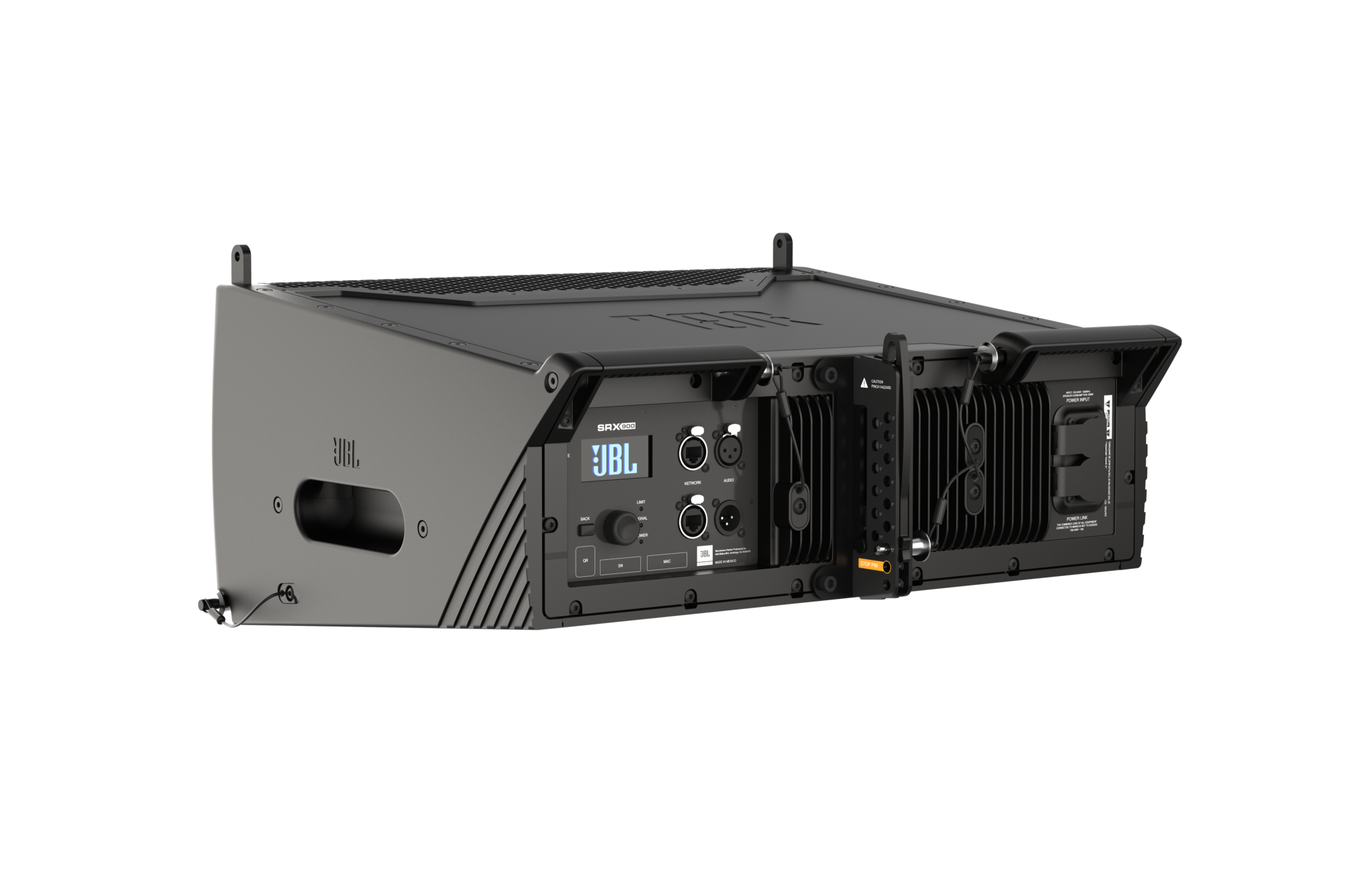

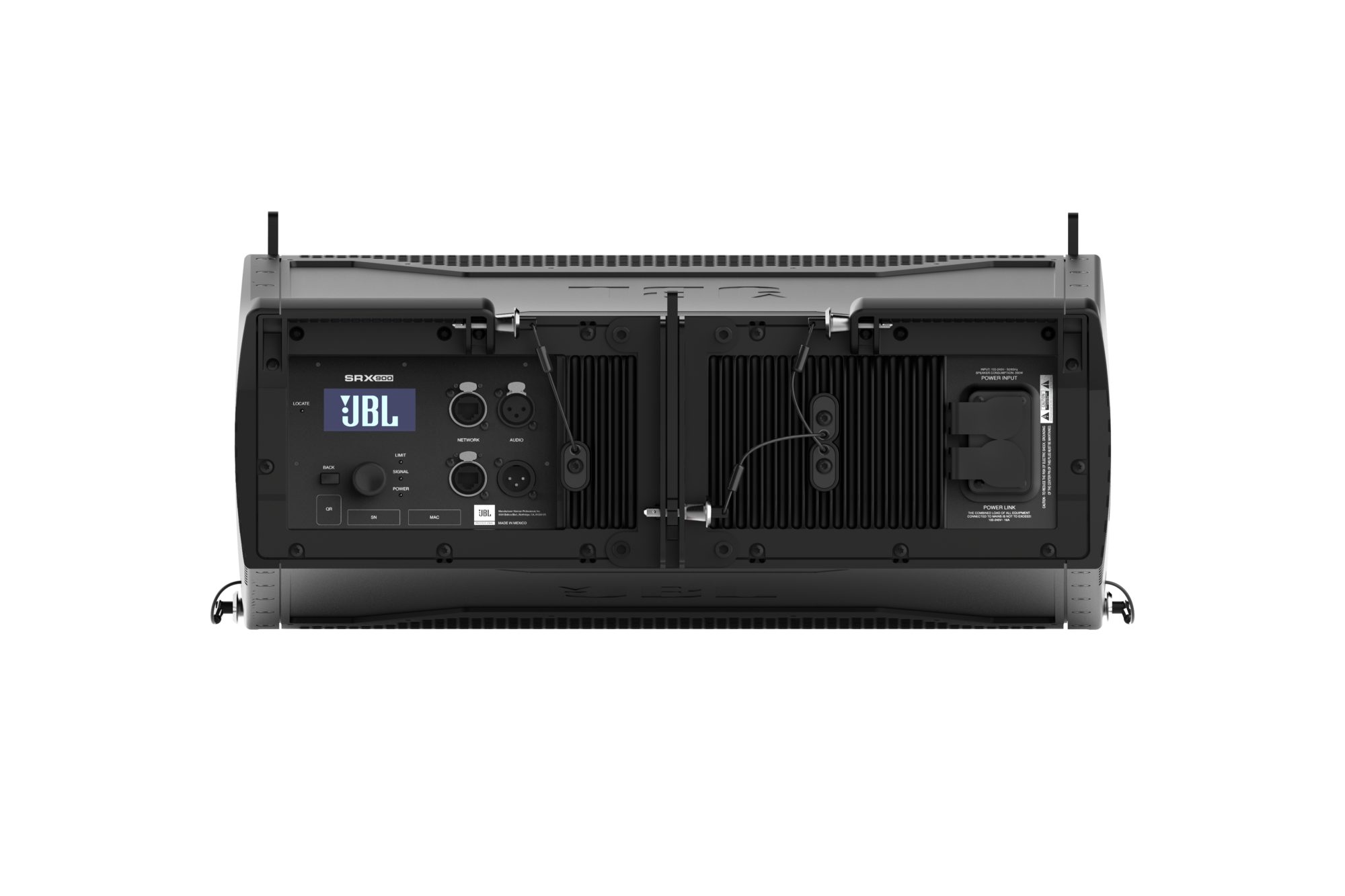

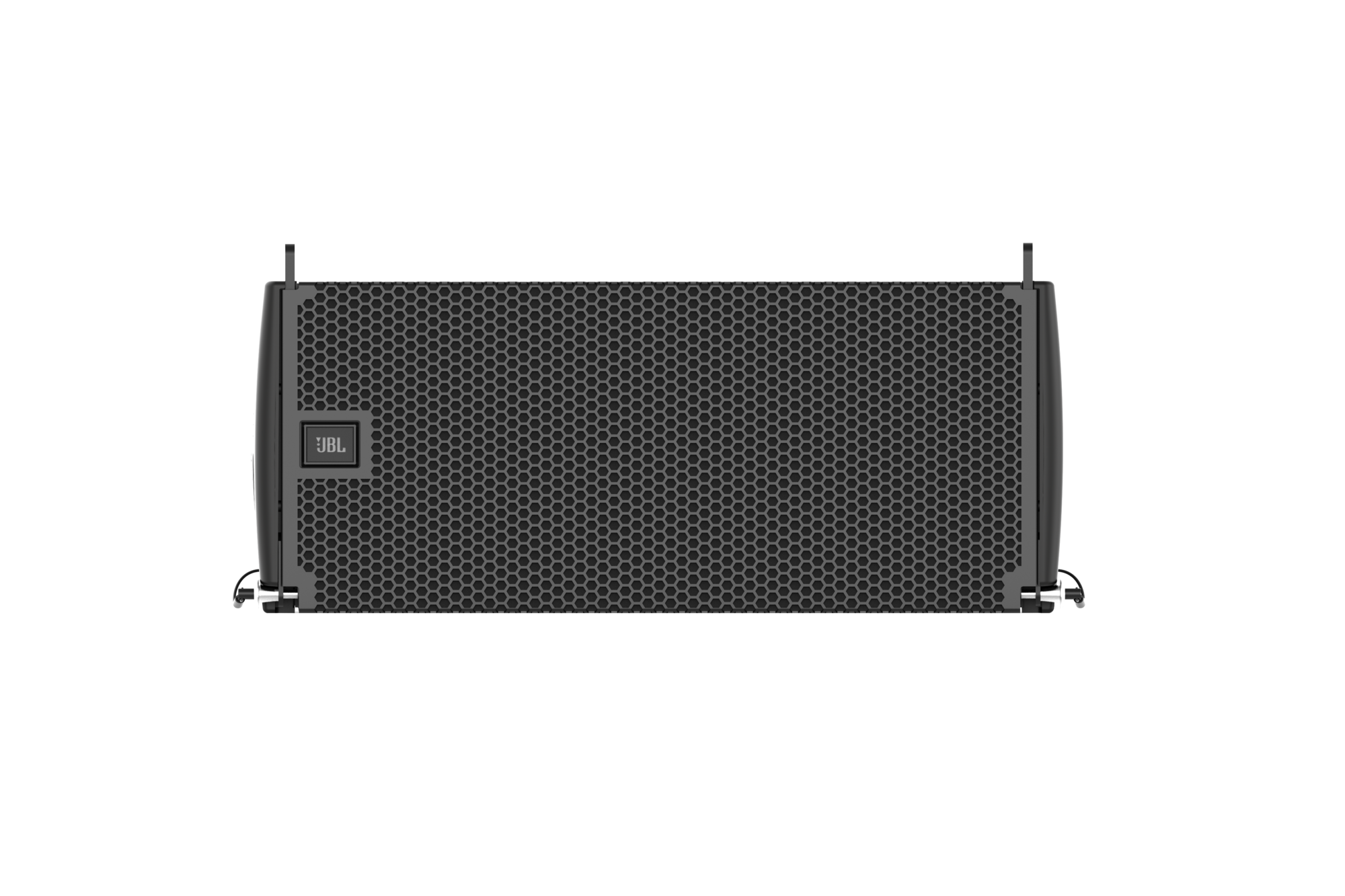

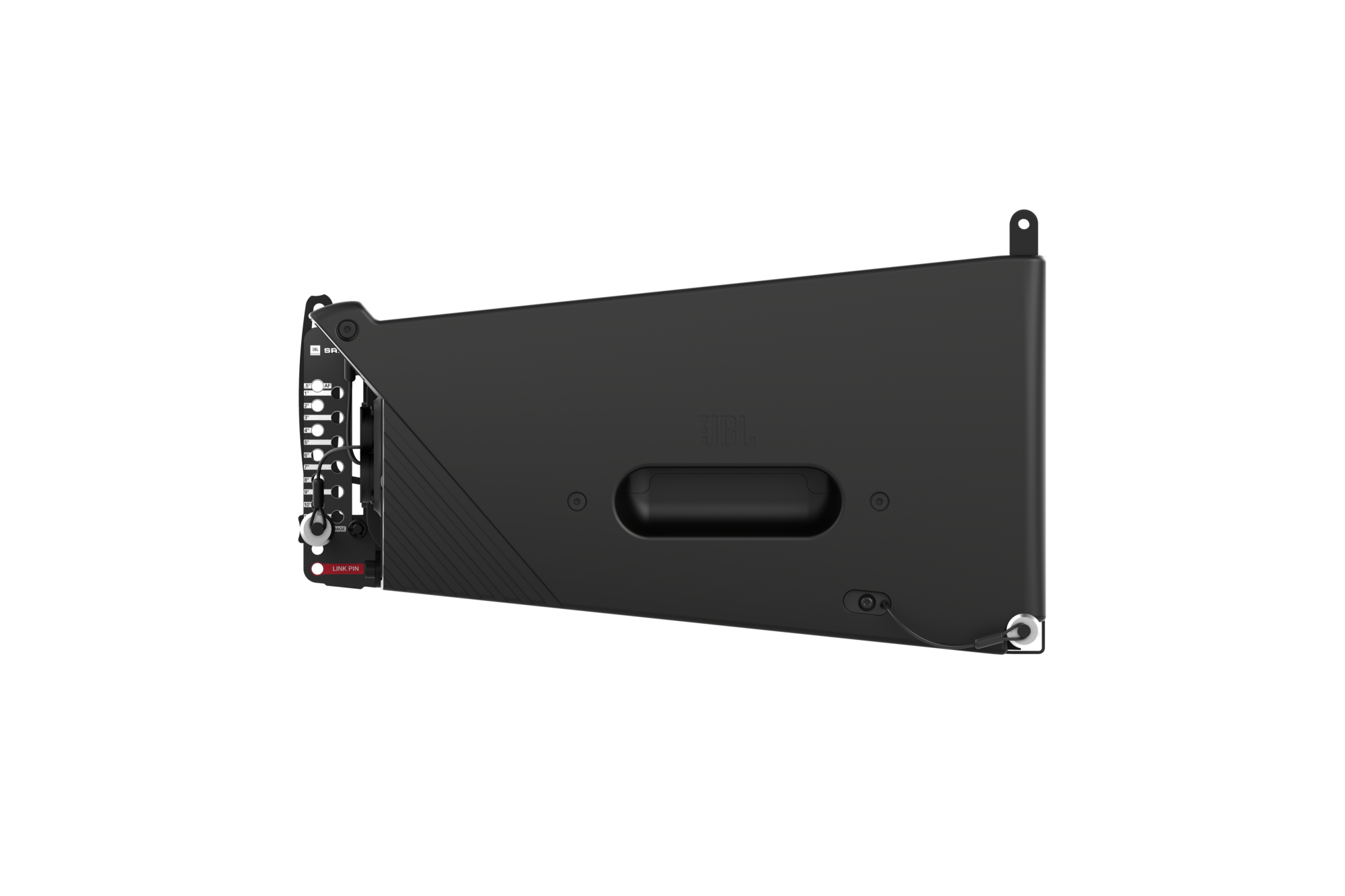

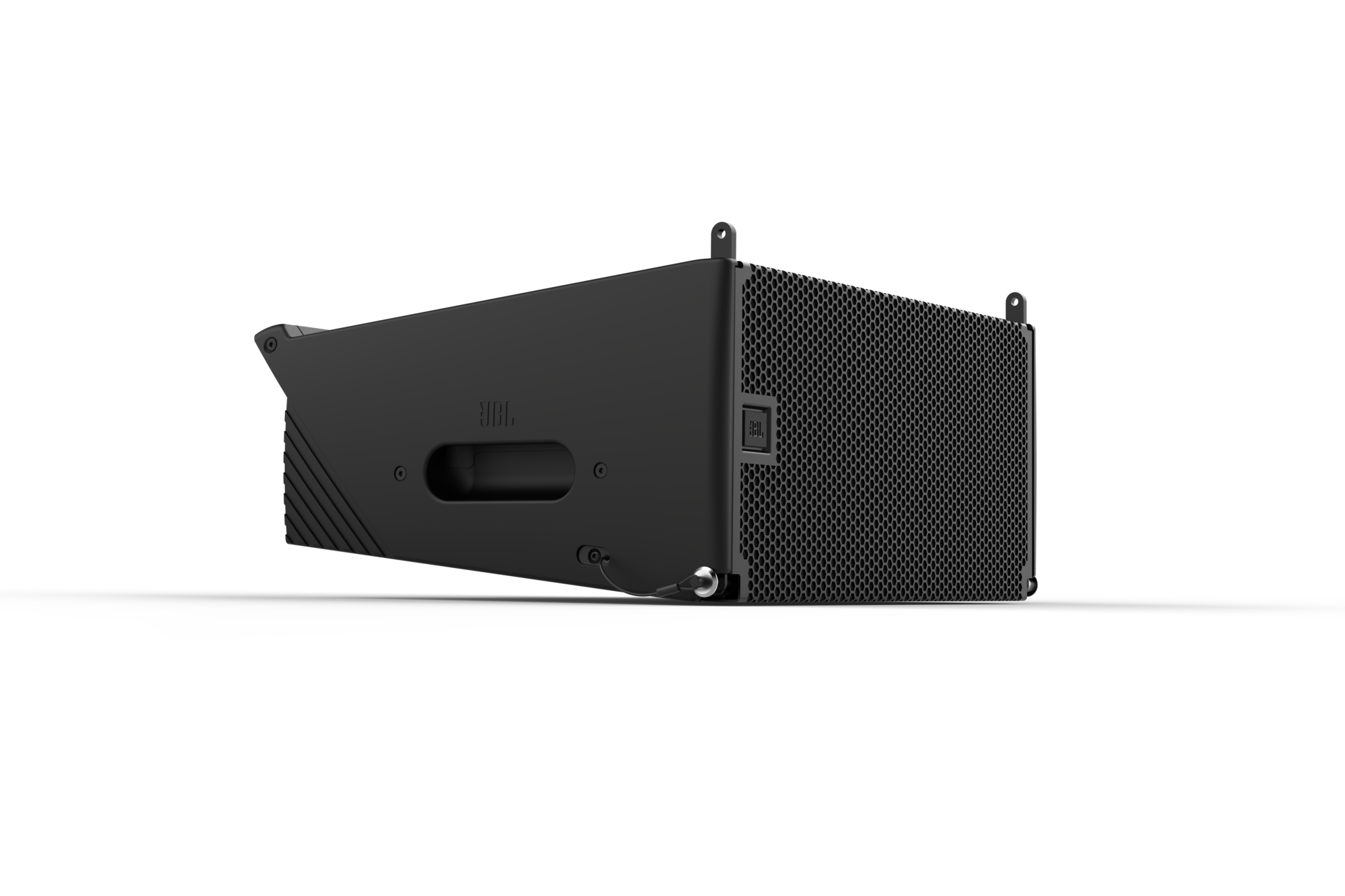

The SRX906LA is a compact, two-way, active line array element that can cover a variety of small to midsize applications. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.

JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 6.5-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.

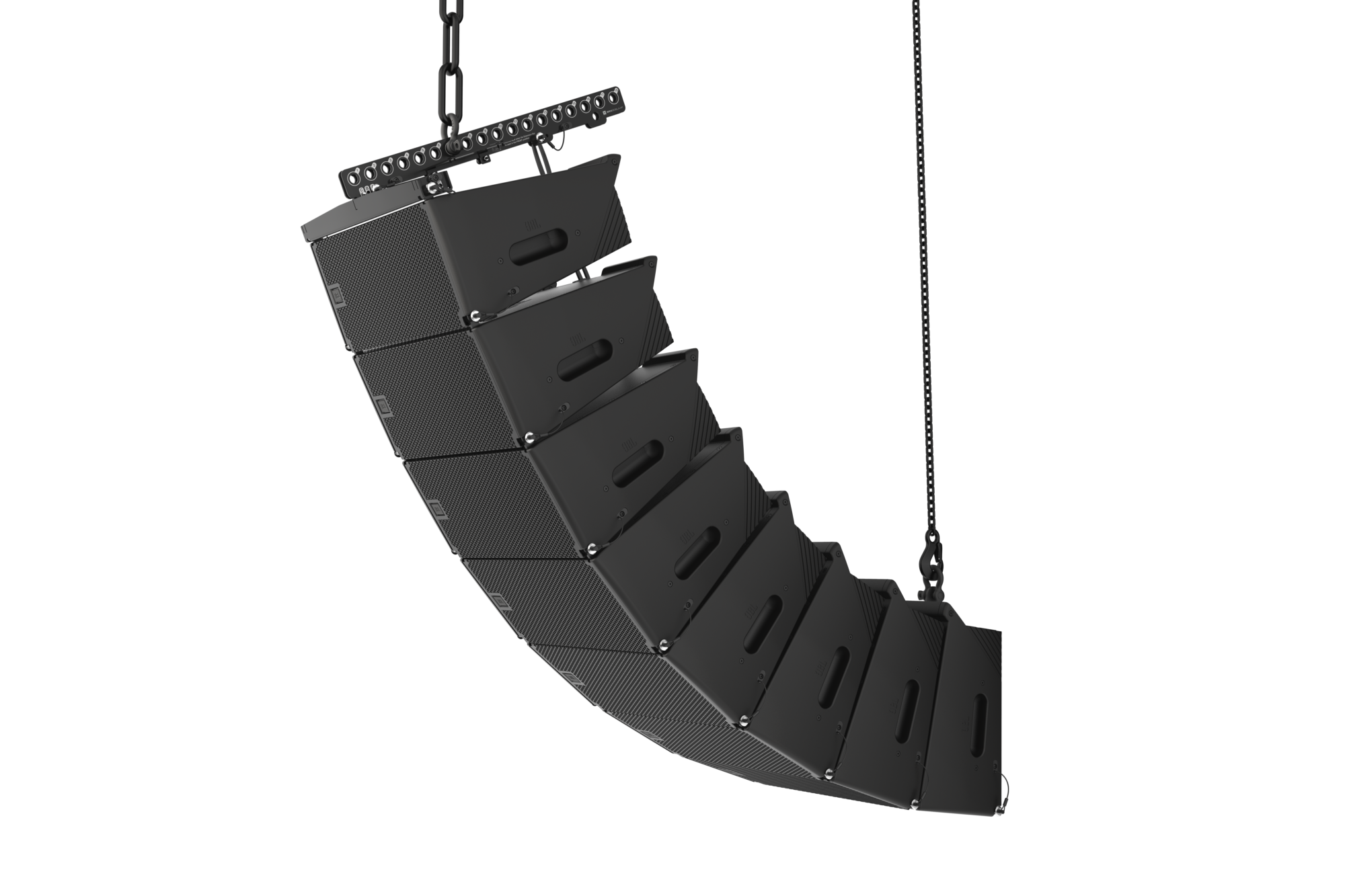

An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. JBL Performance is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

What's in the Case?

SRX906GRND: Ground Stack Package Includes

JBLSRX906 (2) JBL SRX906 Dual 6.5″ Active 2-Way Line Array Spkr
TRU1ECN050 (1) 50′ Combo Ethercon + True1 to Edison Cable
ECON010 (1) Ethercon to Ethercon 10′
T11M (1) True1 power cable 3’
JBLSRX918S (option) JBL SRX918S Single 18″ Active Subwoofer
JBLSRX928S (option) JBL SRX928S Dual 18″ Active Subwoofer
JBLSRX6BP (1) Baseplate for SRX906LA
CANANUK960 (1) Case, Nanuk 960 (Hardware Case TBD)
CASRX906D (1) Case, JBL SRX906LA Speaker Dual
CASRX918S (option) Case, Single Sub Case for JBL SRX918S
CASRX928S (option) Case, Single Sub Case for JBL SRX928S

SRX906POLE: Pole Mount Package Includes

JBLSRX906 (2) JBL SRX906 Dual 6.5″ Active 2-Way Line Array Spkr
TRU1ECN050 (1) 50′ Combo Ethercon + True1 to Edison Cable
ECON1M (1) Ethercon to Ethercon 3’
T11M (1) True1 power cable 1m
JBLSRX6BP (1) Baseplate for SRX906LA
JBLSRXPMA (1) Universal 35mm Pole Mount Adapter for SRX
SRXKM21337 (1) Adjustable Length Speaker Stand Rod for SRX900
SPKRSTDBAG (1) Speaker Stand Bag 51″ Interior (Black)
JBLSRX918S (option) JBL SRX918S Single 18″ Active Subwoofer
JBLSRX928S (option) JBL SRX928S Dual 18″ Active Subwoofer
CANANUK960 (1) Case, Nanuk 960
CASRX906D (1) Case, JBL SRX906LA Speaker Dual
CASRX918S (option) Case, Single Sub Case for JBL SRX918S
CASRX928S (option) Case, Single Sub Case for JBL SRX928S

SRX906RIG: Rigging Package Includes

JBLSRX906 (2) JBL SRX906 Dual 6.5″ Active 2-Way Line Array Spkr
TRU1ECN100 (1) 100FT Combo EtherCon + True1 to Edison Cable
ECON1M (1) Ethercon to Ethercon 3’
T11M (1) True1 power cable 3’
SRX906AFEB (1) Extension Bar to Uptilt/Downtilt Aiming of SRX906
JBLSRX06AF (1) Array Frame Spreader Bar for SRX906LA
JBLSRXSHKL (2) Crosby 1/2″ SPA Black Theatrical Screw Pin Anchor
JBLSRXPB (1) SRX900 Pull Back Accessory
CASRX906D (1) Case, JBL SRX906LA Speaker Dual

Specifications

Frequency Range (-10dB)	53 Hz-19 kHz (array preset)
Coverage Pattern	105 degrees nominal (400 Hz-16 kHz)
Maximum SPL	135 dB
System Type	Line Array, two-way active
Amplifier Design	Class-D
Continuous Power Rating	600 Watts \| LF: 400 Watts \| HF: 200 Watts
LF Driver	(2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive®
HF Driver	(1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
Enclosure	Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds
Inter-Enclosure Angles	0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Dimensions (H x W x D)	305 mm x 716 mm x 519 mm (12.0 in x 28.2 in x 20.5 in)
Net Weight (each)	26.7 kg (59 lbs)
