Product Highlights

High-brightness laser projector for staging and large-venue projection
Interchangeable lens platform (lens typically ordered separately)
Designed for multi-projector installs, blending, and mapping workflows
WUXGA with 4K Enhancement.
High-aperture Epson 3LCD, 3-chip technology.
13,000 lumens of equal white and color brightness.
3G-SDI In/Out to accommodate daisy chaining and long cable runs.
Color reproduction of up to 1.07 billion colors.

Overview

This premium laser projector is equipped with 4K Enhancement, acceptance of 4K signal, and delivers up to 4.6 million pixels on-screen for incredibly crisp images. A high native contrast ratio produces deep blacks. Users can control multiple projectors in a single, large space with Epson’s Projector Professional Tool (EPPT) and efficiently manage installed projectors with Epson’s Projector Management software. With 3G-SDI input and output to accommodate daisy-chaining and long cable runs.

Compatible with the following lenses:

Specifications

Specs	Value
Projection System
Technology	High-aperture Epson 3LCD, 3-chip
Projection Method	Front / rear / ceiling mount
Driving Method	Poly-silicon TFT Active Matrix
Pixel Number	2,304,000 (1920 x 1200) x 3
Pixel Arrangement	Cross stripe
Resolution & Signal
Signal Input	Max: 4096 x 2160 (resized), Native display: 1920 x 1200
Native Resolution	WUXGA with 4K Enhancement (1920 x 1200 x 2)
Resolution on Screen	WUXGA with 4K Enhancement / 4.6 million pixels
Aspect Ratio	4:3, 16:9, 16:10
Image Performance
Color Brightness	13,000 lumens
White Brightness	13,000 lumens
Contrast Ratio	2,500,000:1 (Dynamic)
Uniformity	85%
Color Reproduction	Up to 1.07 billion colors
Optics
Lens Shift	Vertical: ±60% Horizontal: ±18%
Keystone Correction	Vertical: ±45° Horizontal: ±30°
Light Source	Laser diode
Power & Noise
Power Supply	100–120 V ±10%, 50/60 Hz AC
Power Consumption	886 W (Normal/Custom) 646 W (Quiet/Extended) 2.0 W (Network Standby) 0.4 W (Energy Saving Standby)
Fan Noise	34 dB (Normal), 29 dB (ECO)
Environment & Security
Operating Temperature	0–50°C (32–122°F)
IP Rating	IP5X
Security	Security cable hole, lens lock, Kensington® lock, wireless LAN lock
Connectivity
Supported Signals	480i/p, 576i/p, 720p, 1080i/p, 3840 x 2160, 4096 x 2160

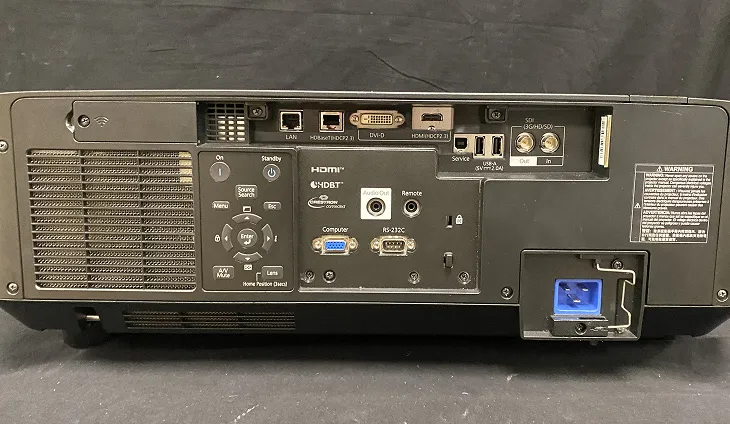

Interfaces	3G-SDI in/out HDMI (HDCP 2.3) HDBaseT DVI-D VGA Audio out (mini stereo) USB Type-B x1 USB Type-A x2 (5V/2A) USB (Wireless optional) RS-232C Remote (mini stereo) LAN (RJ-45)
Physical
Dimensions (W x D x H)	23.1″ x 19.4″ x 8.6″
Weight	23.67 kg (52.2 lbs.) without cage, 37.47 kg (82.62 lbs.) with cage
