Product Highlights

HD (1920x1080)
15,000:1 Contrast Ratio
Inputs: 1x HDMI v1.4, 1xDVI-D, 2xVGA,1xComposite, 1xS-Video
Output: 1x VGA

Overview

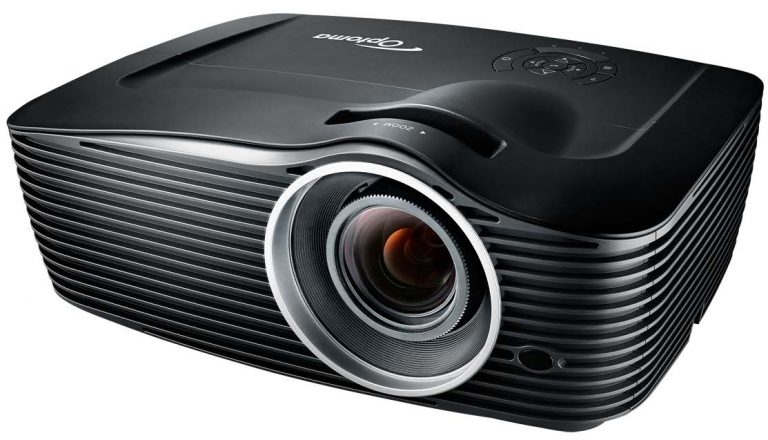

The Optoma EH501 was designed to deliver unsurpassed performance and reliability to meet your installation needs. Its powerful 5,000 lumens output and impressive 15,000:1 contrast ratio deliver remarkably bright presentations with sharp text and color-rich graphics. To ensure it will perform to your current and future needs, the EH501 features a comprehensive I/O panel and the most advanced feature sets in its class. Outstanding features on this remarkable product include HDMI and DVI for digital connectivity, over-the-network presentation capability, wireless presentation capability via optional USB dongle, vertical lens shift and discrete audio inputs including microphone input for maximum installation convenience.

Specifications

Display Technology	Single 0.65″ DC3 DMD DLP® Technology
Native Resolution	HD (1920 x 1080)
Maximum Resolution	1080p (1920 x 1080)
Brightness	5000 lumens
Contrast Ratio	15,000:1 (full on/full off)
Displayable Colors	1.07 Billion
Lamp Life and Type	4000/3000/2500 Hours (ECO+/ECO/normal) 280W
Projection Method	Front, rear, ceiling mount, table top
Keystone Correction	Auto Keystone, ±40° Vertical
Uniformity	>85%
Aspect Ratio	16:9 Native and 4:3 compatible
Throw Ratio	1.37–2.05
Projection Distance	3.2ʹ–32.8ʹ (1.0–10 m)
Image Size (Diagonal)	23.4ʺ–300ʺ (0.6–7.62 m)
Projection Lens	F=2.42–2.98, f=20.77–31.13 mm, 1.5x manual zoom and focus
Lens Shift	Vertical 115% ~ 134%
Audio	Two 15-Watt speakers
Noise Level	27dB
Remote Control	IR remote mouse with laser
Operating Temperature	41–113°F (5–45°C), 85% max humidity
Power Supply	AC input 100–240V, 50–60Hz, auto-switching
Power Consumption	Max 355W (Normal), Min 279W (Eco+), <0.5W (standby-ECO)
Computer Compatibility	HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Macintosh compatible
Video Input Compatibility	NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
Vertical Scan Rate	24–85Hz, 120Hz, 144Hz
Horizontal Scan Rate	15.3–91.1KHz
User Controls	Complete on-screen menu, adjustments in 27 languages

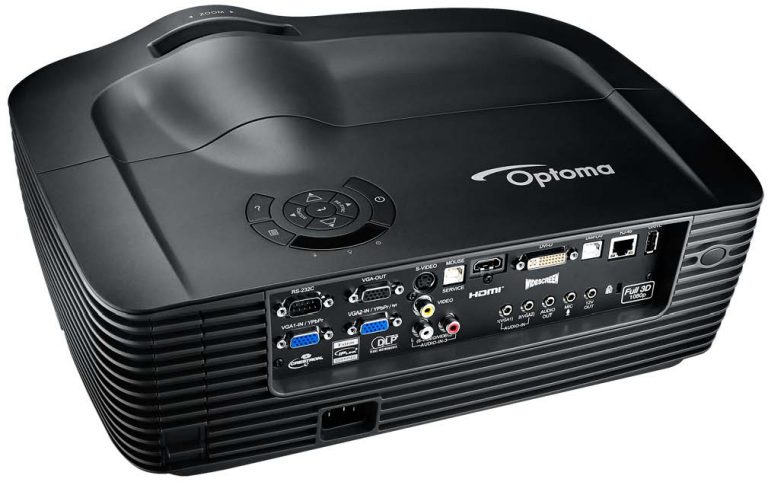

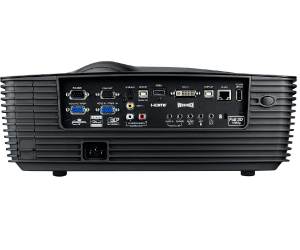

I/O Connectors	HDMI v1.4, DVI-D, two VGA-in, VGA-out, S-video, composite video, two stereo audio-in, stereo RCA audio in, mic-in, stereo audio-out, RJ45, RS-232C, Two USB-A, Two USB-B, 12v trigger
Loop Through	Monitor: D-Sub 15 pin VGA output Audio-out: Stereo 3.5 mm mini-jack (functional in both normal and standby modes)
Security	Kensington® Lock Port, security bar and keypad lock
Product Weight	9.9 lbs. (4.5 kg)
Product Dimensions (W x H x D)	15.2″ x 6″ x 11″ (386 x 152 x 279 mm)
