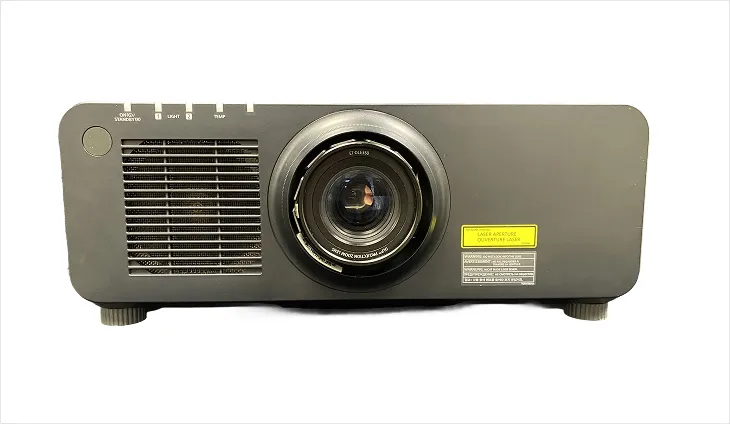

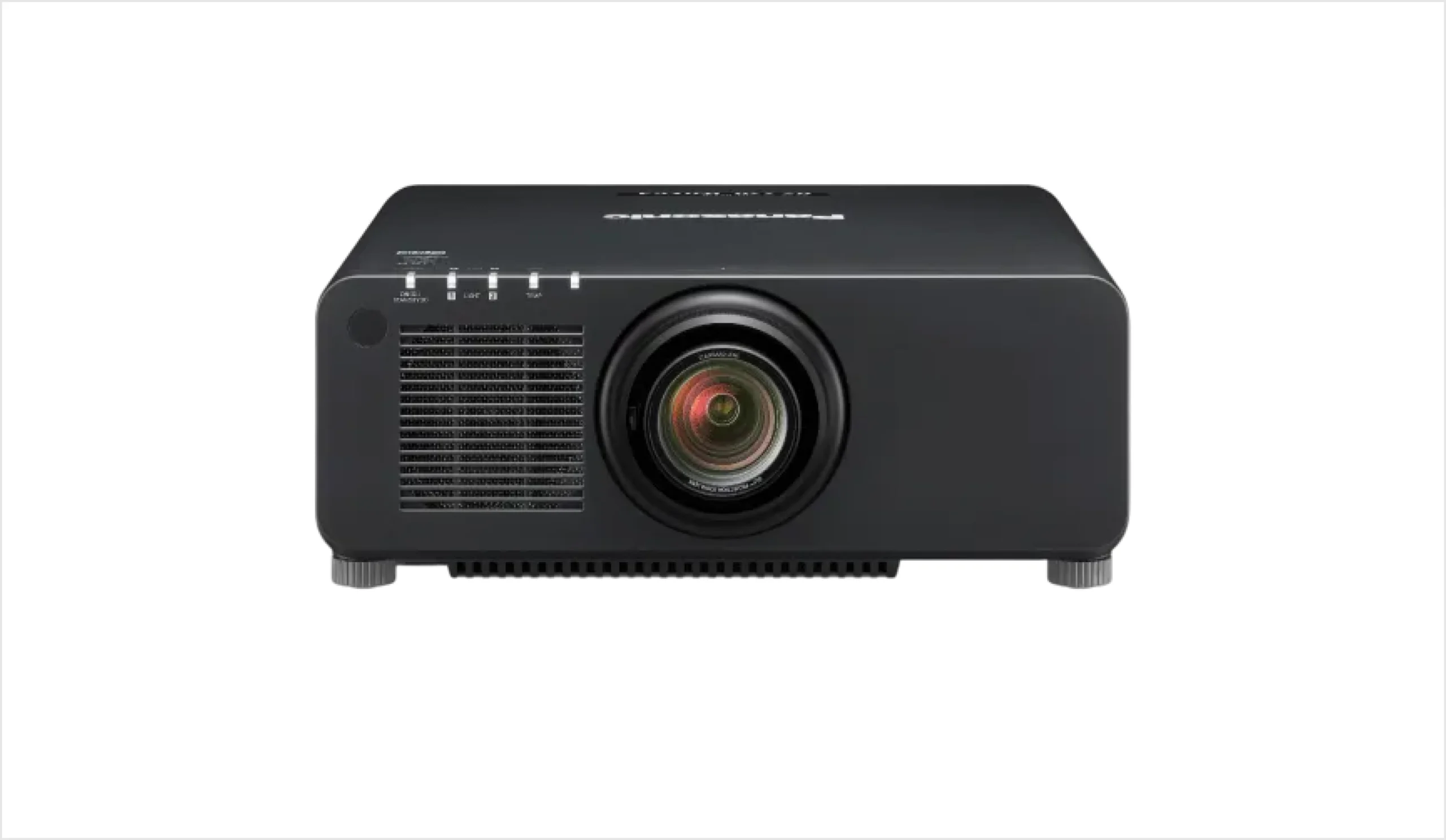

Panasonic PT-RZ770

7,200 Lumens 1-Chip DLP Laser Projector


Product Highlights

  • 1-Chip DLP™ Imaging and SOLID SHINE Laser Technology Deliver Superior White-balance and Color Accuracy
  • Dynamic Light Control for 10,000:1 Contrast
  • Detail Clarity Processor 3 Improves Image Clarity, Detail, and Depth
  • Dual-Drive Laser Optical Engine Ensures Reliable 24/7 Operation with Light-source Failover Protection Circuitry
  • Requires 100-240V AC Edison Plug
Rentex No. RZ770 | Mfr No. PT-RZ770

Wide spectrum color with up to 7.200 lm (center) brightness

With the next generation of the DLP™ technology the RZ770 series is delivering high resolution in detail and the dual laser modules outputting a brightness of up to 7,200 lm (center). Due to the quartet color harmonizer the energy loss of the light source is reduced and the robust and heat resistant phosphor wheel of the PT-RZ770 solid shine laser series produces scintillating images with unfailing reliability.

Outstanding white balance and color reproduction

The quartet color harmonizer wheel mechanism captures a wider color space than comparable laser projectors, which allows white to be reproduced realistically on the screen. With conventional projectors it’s difficult to achieve an accurate white balance causing images to appear with a distracting greenish tint. Panasonic’s quartet color harmonizer eliminates this negative impact by adding an additional yellow segment to the color wheel to produce whites with unparalleled accuracy for natural and realistic picture quality.

Maintain image quality for longer use

Thanks to the long lasting dual solid state laser modules, there are no lamps which needs to be replaced. The image colors and brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality preserves longer

Dynamic light control delivers better contrast

The PT-RZ770 series directly modulates laser power output to achieve a high contrast with low power consumption. A digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while the accurate 10.000:1 contrast ratio is delivered even when bright and dark scenes are frequently interchanging.

Vivid images in bright environments

Panasonics premium system daylight view 3 prevents images from washing cut in well-lit environments and enhances brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colors. The result is a greater visual impact even in challenging conditions.

Detail clarity processor 3 – Sharpness in the finest details

This unique Panasonic circuit optimizes the sharpness of each image based on the super high, high, medium and low frequency components of the extracted image information. The resulting images are expressed with natural and convincing realism.

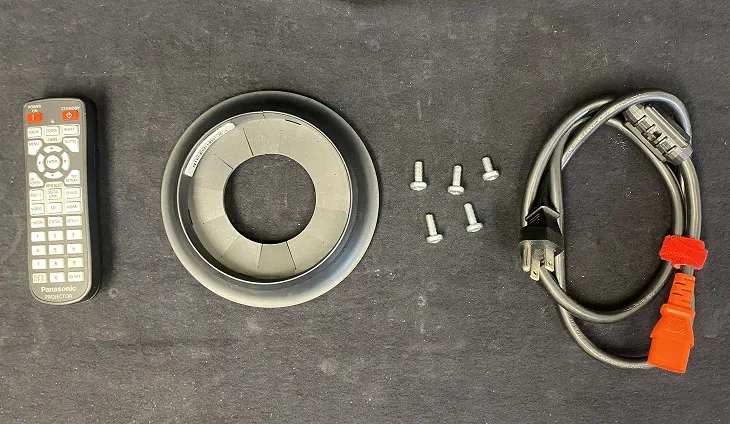

  • (1) PANASONIC PT-RZ770 DLP Laser Projector
  • (1) Panasonic Projector Remote Single Chip
  • (1) Projector USB Manual
  • (1) 14 AWG 5-15P to RED C13 Power
  • (1) CABLE:VGA (M) TO (M), 6′
  • (1) CABLE: HDMI (M) TO (M), 10′
Power supply AC100 – 240V 8.3A 50Hz/60Hz
Power consumption 825W
NORMAL: 593W ECO: 508W LONG LIFE1: 333 – 477W
LONG LIFE 2: 310 – 477W LONG LIFE 3: 286 – 477W SHUTTER: 72W
STANDBY MODE (When the [QUICK STARTUP] function is enabled): Approx. 85 W
*Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297 ft),
ICE62087: 2008 Broadcast contents,
Picture mode: Standard, Dynamic Contrast2
BTU value Max 2,815 BTU
Lens | PT-RZ770B/W Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm
Lens | PT-RZ770LB/LW Optional powered zoom/focus lenses and xed-focus lens
Light source Laser Diode Laser class 1(Class3R for US models)
Luminance life for set: 20,000 hours at half luminance (normal)/
24,000 hours at half luminance (Eco)
* Temperature: 30°C (86°F), Altitude 700m (2,297 ft), Dust: 0.15mg/m3
Dynamic Contrast3
43,800 hours at constant luminance (LONG LIFE1)
61,320 hours at constant luminance (LONG LIFE2)
87,600 hours at constant luminance (LONG LIFE3)
Screen size 1.27- 15.24 m (50-600 inches) (16:10 aspect ratio)
*1.27 – 5.08 m (50 – 200 inches) with the ET-DLE055 (16:10 aspect ratio)
*2.54 – 7.62 m (100 – 350 inches) with the ET-DLE030 (16:10 aspect ratio)
Brightness*3 7,200 lumens (Center)*2/ 7,000 lumens*3
7,000 lumens (Half luminance) (NORMAL)
5,600 lumens (Half luminance) (ECO)
2,800 lumens (Constant luminance) (LONG LIFE1)
2,300 lumens (Constant luminance) (LONG LIFE2)
1,900 lumens (Constant luminance) (LONG LIFE3)
Center-to-corner uniformity*3 90%
Contrast*3 10,000:1 (All White/All Black) (Dynamic Contrast3)
Scanning frequency | SDI 3G-3G-SDI signal (RGB 4:4:4 12-bit/10-bit):
SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i,
1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p,
[2K/24p], [2K/25p], [2K/30p]
3G-SDI signal (YPBPR4:2:2 10-bit):
SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p,
[2K/48p], [2K/50p], [2K/60p]
HD-SDI signal (YPBPR4:2:2 10-bit):
SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p,
1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p,
1125(1080)/24sF, 1125(1080)/30p
SD-SDI signal (YCBCR4:2:2 10-bit):
SMPTE ST 259 compliant: 525i(480i), 625i(576i)3G-
Scanning frequency | HDMI/DVI-D fH: 15- 100kHz, fV: 24 – 120Hz, dot clock: 25 – 162 MHz
525i (480i)*4, 625i (576i)*4, 525p (480p), 625p (576p), 750 (720)/60p,
750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p,
1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/30p, 1125 (1080)/60p,
1125 (1080)/50p, VGA (640 x 480) – WUXGA (1920 x 1200) compatible
with non-interlaced signals only
Scanning frequency | RGB fH: 15- 100kHz, fV: 24 – 120Hz, dot clock: 20 – 162 MHz
Scanning frequency | YPBPR (YCBCR) 525i (480i): fH 15.73 kHz; fV 59.9 Hz,
625i (576i): fH 15.63 kHz; fV 59.9 Hz,
525p (480p): fH 31.50 kHz; fV 60 Hz,
625p (576p): fH 31.25 kHz; fV 50 Hz,
750 (720)/60p: fH 45.00 kHz; fV 60 Hz,
750 (720)/50p: fH 37.50 kHz; fV 50 Hz,
1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz,
1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz,
1125 (1080)/25p: fH 28.13 kHz; fV 25 Hz,
1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz,
1125 (1080)/24sF: fH 27.00 kHz; fV 48 Hz,
1125 (1080)/30p: fH 33.75 kHz; fV 30 Hz,
1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz,
1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz
Scanning frequency | Video/S-Video fH: 15.73 kHz, fV: 59.9 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical: +50%, -16%(powered),
Horizontal: +30%, -10%(When using the ET-DLE085, +28%, -10%) (powered)
NOTE: Optical a xis shift function cannot be operated when used with the ET-DLE055.
using the ET-DLE030, the optical axis is fixed.
Installation Ceiling/floor, front/rear, 360 degree free installation

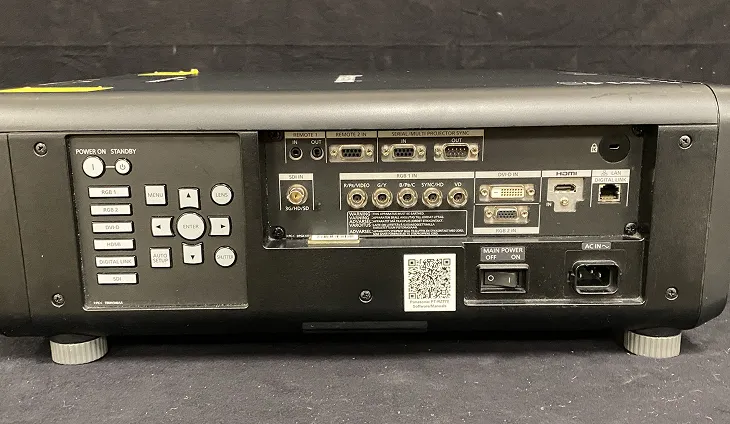

Terminals | SDI IN BNC x 1,
3G-SDI signal: SMPTE ST 424 compliant
HD-SDI signal: SMPTE ST 292 compliant
SD-SDI signal: SMPTE ST 259 compliant
Terminals | HDMI IN HDMI 19-pin x 1, Deep Color, compatible with HDCP
Terminals | DVI-D IN DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP,
for single link only
Terminals | RGB 1 IN BNC x 5
Terminals | RGB 1 IN | R, G, B R: 0.7 Vp-p, 75 ohms,
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
B: 0.7 Vp-p, 75 ohms
HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals | RGB 1 IN | Y, PB, PR (Y, CB, CR) Y:1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals | RGB 1 IN | Y/C Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Terminals | RGB 1 IN | Video 1.0Vp-p, 75 ohms
Terminals | RGB 2 IN D-sub HD 15-pin (female) x 1
Terminals | RGB 2 IN | R, G, B R: 0.7 Vp-p, 75 ohms,
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
B: 0.7 Vp-p, 75 ohms
HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals | RGB 2 IN | Y, PB, PR (Y, CB, CR) Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms
Terminals | SERIAL/MULTI PROJECTOR SYNC IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | SERIAL/MULTI PROJECTOR SYNC OUT D-sub 9-pin (male) x 1 for link control
Terminals | Remoter 1 In M3 jack x 1 for wired remote control
Terminals | Remoter 1 Out M3 jack x 1 for link control (for wired remote control)
Terminals | Remoter 2 In D-sub 9-pin (female) x1 for external control (parallel)

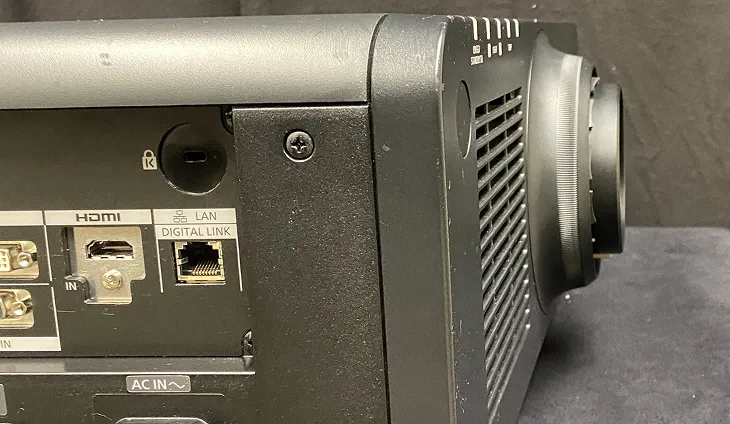

Terminals | LAN/DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control)
connection, 100Base-TX, compliant with PJLink™(Class 1)
Deep Color, HDCP
Power cord length 3.0 m (9 ft 10 in)
Cabinet materials Molded plastic
Dimensions (W x H x D) | PT-RZ770B/RZ770W 498 x 200 *5 x 581mm
(19-19/32 x 7-7/8*5 x 22-7/8in ) with supplied lens
Dimensions (W x H x D) | PT-RZ770LB/RZ770LW 498 x 200 *5 x 538 mm
(19-19/32 x 7-7/8*5 x 21-3/16in) without lens
Operation noise 36 dB
Operating temperature 0-45 °C (32-113 °F) *6
Operating humidity 10%-80% (no condensation)
Note *1 When the STANDBY MODE is set to Eco, network functions such as power on over the LAN will not operate.
*2 The value of the light output at the center region of the projected image is extracted based on the light output measurement method defined by
the ISO/IEC 21118:2012 international standards.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal).
*5 with legs at shortest position.
*6 Limits the luminance when used in locations from 0m to 2,700m (0ft to 8,858ft) above sea level at ambient temperatures of 35°C (95°F) or higher,
or from 2,700m to 4,200m (8,858ft to 13,780ft) above sea level at ambient temperatures of 25°C (77°F) or higher.
Brightness 7,200 lumens (Center)/ 7,000 lumens
Resolution WUXGA 1,920 x 1,200 pixels
Technology 1-Chip DLP Laser
LCD panel | Display method DLP™ chip x 1, DLP™ system
LCD panel | Panel size 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
LCD panel | Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
Weight 23 kg (51 lbs.) without cage, 36.4 kg (80.54 lbs.) with cage
