Product Highlights

4 x HDMI Inputs with Frame Buffers
Hardware or PC Control
12-Channel Digital Audio Mixer
Manual T-Bar
Program Output and Multi-View Preview

Overview

Roland’s V-1HD 4 x HDMI Input Switcher is a portable solution for HD video production that accommodates up to four HD inputs. The inputs each have a frame buffer/TBC so that you don’t need to Genlock your input sources together. You can control the switcher manually by using the built-in controls or connect it to a computer or iPad running optional software for electronic control. Select your working resolution and switch between your four input sources. Built into the switcher is a 12-channel audio mixer, which can de-embed and embed audio signals from HDMI. The integrated T-fader allows you to manually control the speed of transitions, or you can use the take button to actuate your selected transition. The unit features a program and multi-view preview output as well as an analog audio input and output. Though small in size, it allows you to perform picture-in-picture, green-screen, and other keying effects, and a transform control enables advanced video effects on your footage.

Specifications

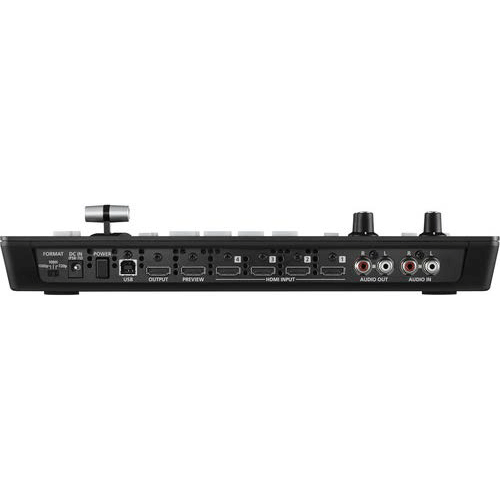

Video Processing 4:2:2 (Y/Pb/Pr), 8-bit Input / Output Input 4 x HDMI Type A 1 x L/R pair RCA (audio) 1 x Stereo mini jack, mic (plug-in power supported) Output 2 x HDMI (preview, program output) 1 x L/R RCA (audio) 1 x Stereo mini jack Video Format Input 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94 Output 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94 Audio Processing 48 kHz 24-bit Max Audio Delay: 500 ms (each channel) Input Level Audio: -10 dBu (maximum: +8 dBu) MIC: -41 to -31 dBu (maximum:-1 dBu) Input Impedance Audio: 15 kOhms MIC: 10 kOhms Output Level Audio: -10 dBu (maximum: +8 dBu) Headphones: 72 mW + 72 mW (32 ohms) Output Impedance Audio: 1 kOhms Headphones: 10 ohms Interface – Connectors 1 x MIDI input 1 x MIDI output/through 1 x USB B (remote control from PC) Power Current Draw: 1.5A Power Consumption: 18 W Dimensions 12.3 x 4.0 x 2.3″ / 31.3 x 10.2 x 5.9 cm Weight 2.6 lb / 1.2 kg
