Product Highlights
- Bright and Vivid Picture Quality from 3-Chip DLP SOLID Shine Laser
- ET-PFD560 Cage Included
- High Image Quality and Reliability
- Multi-screen Support System
- Built-in Geometric Adjustment
Overview
The 12,000 lm PT-RZ12K 3-Chip DLP™ Series projectors combine class-leading imaging technologies with the practical advantages of Panasonic SOLID SHINE Laser: minimal picture quality degradation over long periods in continuous use, 20,000-hour maintenance-free operation*, failsafe reliability, and a wealth of powerful features for creative visual presentations in large spaces.
Compatible with the following lenses:
Compatible with the following lenses:
- Panasonic Short Throw Powered Zoom Lens 0.7
- Panasonic ET-D3LEW60 0.9-1.1 lens
- Panasonic ET-D3LEW50 0.7HD lens
- Panasonic Ultra Short Throw Lens 0.36 HD
- Panasonic ET-D3LEU101 lens
- Panasonic Ultra Short Throw Lens 0.37 HD
- Panasonic ET-D3LEW201 lens
- Panasonic ET-D3LEW300 Short-Throw 0.77-1.12 Lens
- Panasonic Zoom Lens 1.3-1.7
- Panasonic Zoom Lens 1.7-2.4 (16:10 aspect ratio)
- Panasonic Zoom Lens 2.4-4.7
- Panasonic Zoom Lens 4.6-7.4 (16:10 aspect ratio)
- Panasonic Zoom Lens 0.9-1.1
- Panasonic Zoom Lens 7.3-13.8 HD
- Panasonic Ultra Short Throw Lens 0.36
What's in the Case?
- (1) PANASONIC PT-RZ12KU DLP Laser w/ cage, ET-PFD560
- (4) Versa Clamp for Panasonic Projectors
- (1) Panasonic Projector Remote Single Chip
- (1) Projector USB Manual
- (1) L630P to C19 Power
- (1) 5-15P to C19 Power
Specifications
| Specs | Value |
|---|---|
| Projection System | |
| Display Method | DLP chip x3, DLP projection system |
| Resolution | 1920 x 1200 |
| Refresh Rate | 120 Hz |
| Image & Light | |
| Brightness | 12,000 lm (center) |
| Contrast | 20,000:1 |
| Light Source | Laser diode (Class 1) |
| Light Source Life |
20,000 h (Normal, half luminance) 24,000 h (Eco, half luminance) |
| Power | |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 1,200 W |
| Power Cord Length | 9 ft 10 in |
| Physical | |
| Dimensions (W x H x D) | 578 x 270 x 725 mm (excluding protrusions) |
| Weight | 44 kg (97 lbs.) without cage, 63 kg (139 lbs.) with cage |
| Operating Environment | |
| Operating Temperature | 32–122 °F |
| Operating Humidity | 10–80% (no condensation) |
| Noise | 43 dB |
Technical Documentation

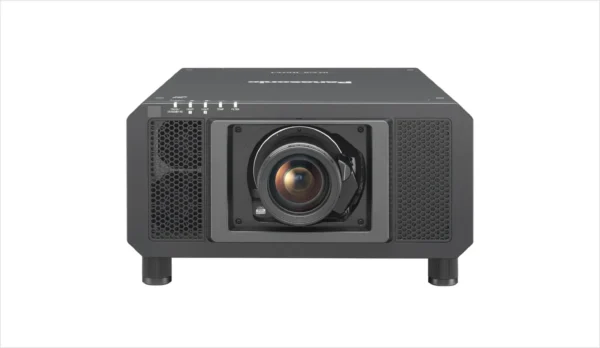

Panasonic PT-RZ12KU
12,000 Lumens 3-Chip DLP Laser Projector
- Rentex No. RZ12KU
- Mfr No. PT-RZ12KU
-
Available for same-day delivery in most major cities
-
Item is show-ready, double-tested for functionality
-
Accessories included, matched to the main unit
