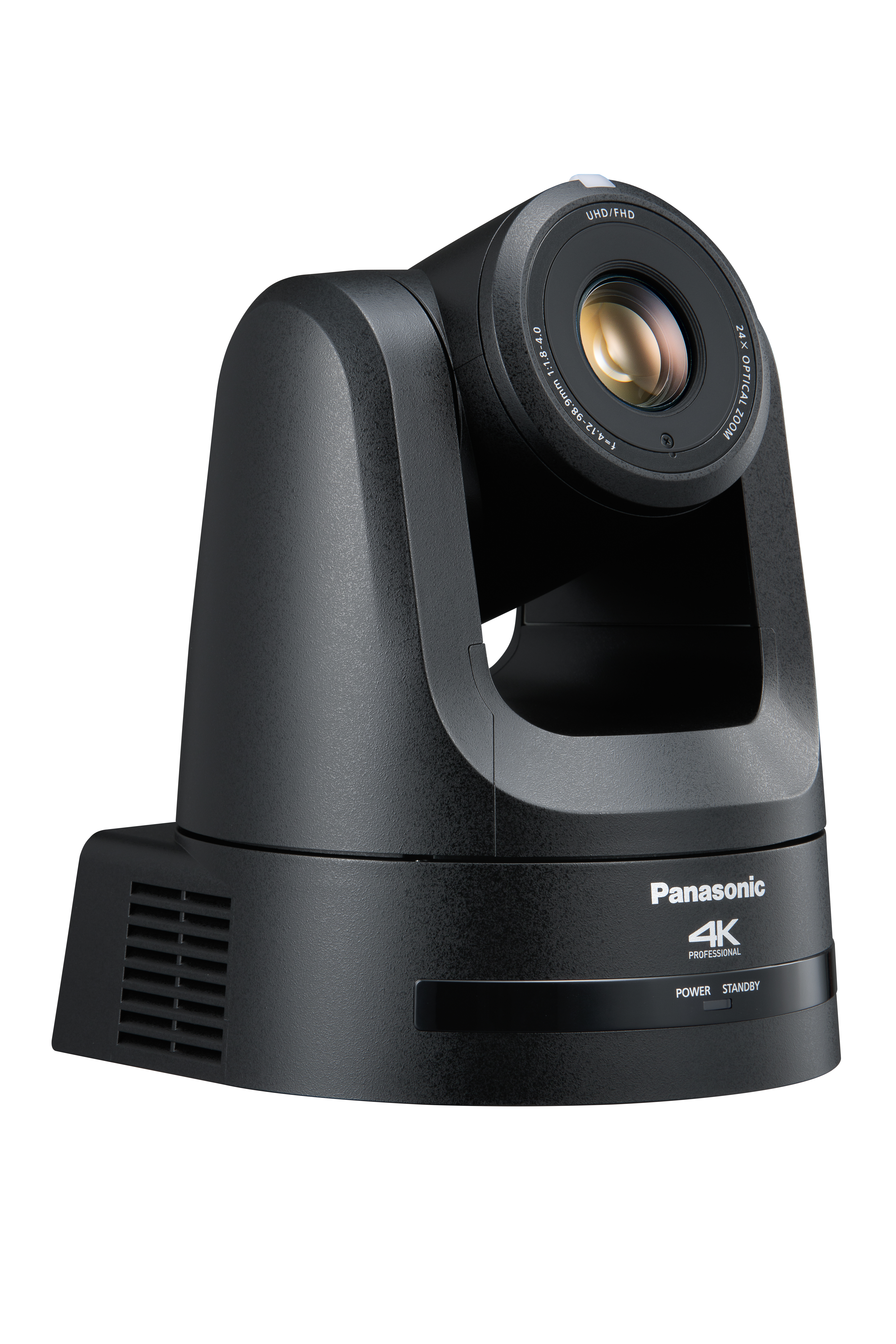

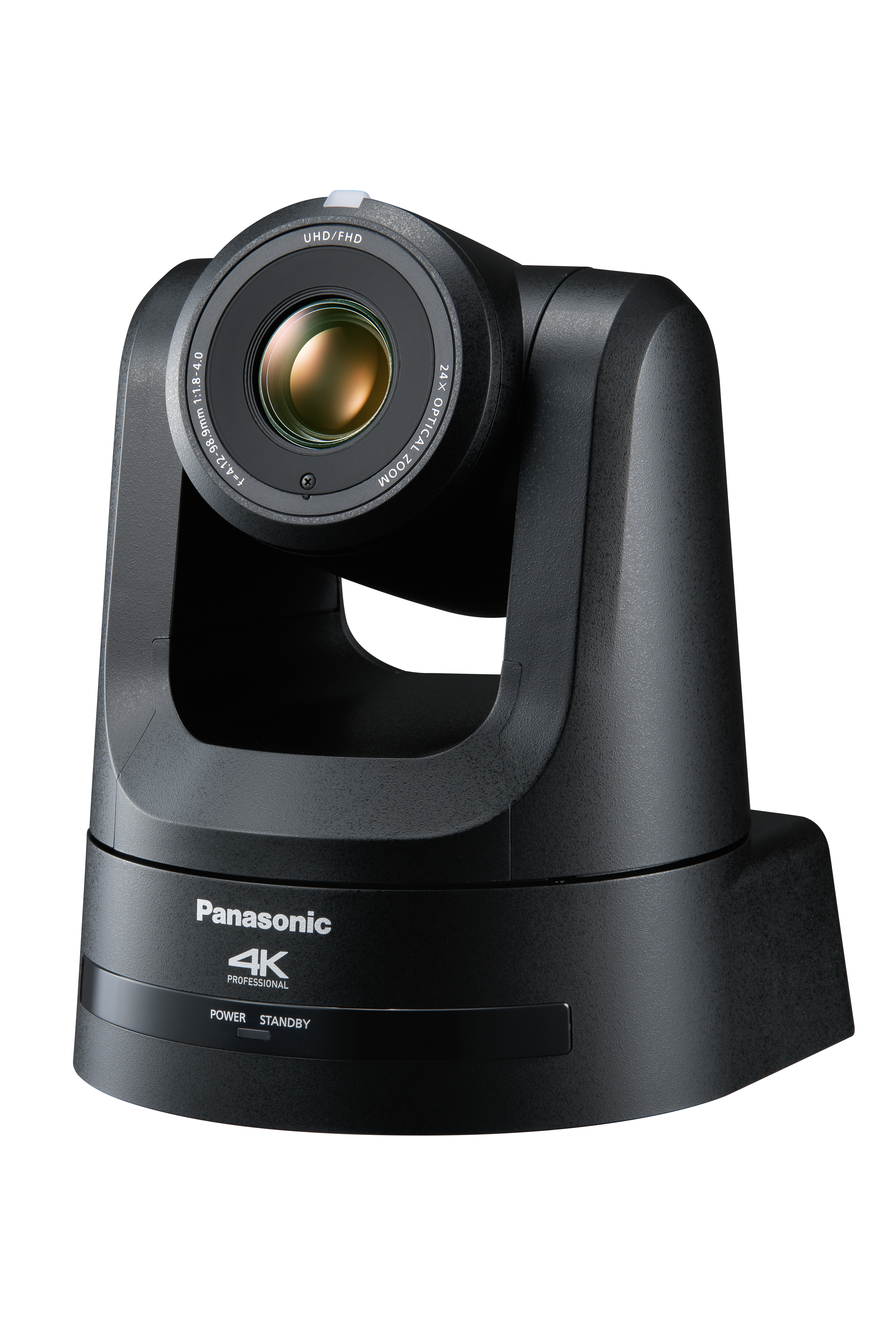

Panasonic AW-UE100K

4K and NDI Network Connected PTZ Camera

Panasonic

Product Highlights

  • Up to full UHD 2160p/59.94p output with a new 1/2.5-type MOS sensor
  • 24x Optical zoom
  • Wide 74.1° Horizontal Field of View
  • 12G-SDI, 3G-SDI, HDMI video outputs
  • Full NDI (4K/HD) and compressed NDI|HX built-in
Rentex No. CAM2080 | Mfr No. AW-UE100K

This AW-UE100K is the latest 4K PTZ camera for 2020 from Panasonic. 12G-SDI, 3G-SDI, and HDMI output of 4K 60p video or simultaneous cropped/zoomed zones. IP video streaming options are built in with full bandwidth, minimal latency 4K NDI or NDI|HX on local networks and SRT and RTMP(S) for streaming out remotely. The wide angle 74.1° view is 23% wider than the previous AW-HE130 giving even more flexibility to capture the room. Electronic and optical image stabilization combine to give you the best shot on the long 24x optical zoom (36x iZoom in HD). A new, high precision Direct Drive motor for the rotating section improves operability, responsiveness and quietness during pan/tilt operations. Additional features for the AW-UE100K included FreeD output for AR/VR applications, auto tracking support and more.

This PTZ is part of our rental kit CAM2080-KIT and includes:

  • (1) Panasonic AW-UE100K 4K PTZ camera
  • (1) POE++ MIDSPAN 60W
  • (1) Manfrotto Super Clamp with Stud
  • (1) AC adapter

Panasonic AW-UE100KPJ PTZ Camera Rental from Rentex

Camera Unit
Imaging Sensors 1/2.5-type 4K MOS x 1
Lens Motorized Optical 24x zoom, F1.8 to F4.0
[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
Zoom • Optical zoom: 24x
• i.Zoom: UHD 28x, FHD 36x
• Digital zoom: 1.4x, 2x
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
Vertical angle of view: 46.0° (wide) to 1.9° (tele)
Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1200 mm (3.9 ft)
Wide end: 100 mm (0.33 ft)
Color Separation Optical System 1MOS
Standard Sensitivity F4, 2000 lx (When normal mode is selected)
F5.6, 2000 lx (When High Sens mode is selected)
Minimum Illumination 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N 60dB(typ) (When [Shooting Mode] is [Normal])
Horizontal Resolution 1500 TV lines Typ (Center area)
Gain Selection Auto, 0 dB to 36 dB*1
Super Gain function equipped : 37 dB to 42 dB
Frame Mix*2 Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan 59.94p/59.94i 60.00 Hz to 7200 Hz
29.97p 30.00 Hz to 7200 Hz
23.98p/24p 24.00 Hz to 7200 Hz
50p/50i 50.00 Hz to 7200 Hz
25p 25.00 Hz to 7200 Hz
Gamma HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3
White Balance ATW : 3200K, 5600K
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability OFF, –99 % to 99 %
Scene File Scene1, Scene2, Scene3, Scene4
Output Format SDI Output: 4K 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
SDI Output: HD 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/29.97PsF, 1080/25p*3,
1080/25PsF, 1080/23.98p*4, 1080/24p*3, 1080/23.98p*3, 1080/23.98PsF,
1080/59.94i, 1080/50i, 720/59.94p, 720/50p
HDMI Output: 4K 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
HDMI Output: HD 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/25p*3, 1080/23.98p*10,
1080/24p*3, 1080/23.98p*3, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Synchronization System
Internal/External synchronization (BBS/Tri-level sync)
Input
Input Connector DC 12 V IN, G/L IN BBS (Black Burst Sync), tri-level sync supported
75 Ω terminal (BNCx1)
MIC/LINE input Compatible (SDI/HDMI/IP)
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack
Input impedance: Approx. 10 kΩ (unbalanced)
• During MIC input
Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz)
Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V
• During LINE input
Input level: –10 dBV
• Input volume variable range: –36 dB to 12 dB (3 dB step)
• Embedded audio output level: –12 dBFS
• Sampling frequency: 48 kHz
• Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP)
Output
Video Output HDMI HDMI 2.0 connector
4:2:2/10bit
• HDCP is not supported.
• Viera Link is not supported.
12G-SDI OUT SMPTE 2082‑1/SMPTE292 standard/75 Ω (BNC x 1)
3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported
Input/Output
Input/Output Connector LAN LAN terminal for IP control and video transmission (RJ‑45)
PoE++ power terminal (IEEE802.3bt compliant)
RS-422 CONTROL IN RS-422A (RJ‑45)
Pan-tilt Head Unit
Camera/Pan-tilt Head Control IP connecting cable LAN cable*5:(category 5e or above, straight cable), max. 100 m (328 ft)
AW protocol connecting cable LAN cable*5:(category 5e or above, straight cable), max. 1000 m (3280 ft)
Installation Method Stand-alone (Desktop) or suspended (Hanging)*6
Pan/tilt Operation Speed Speed range: 0.08°/s to 60°/s (Normal mode)
• 3 speed modes installed
Normal: 60°/s, Fast1: 90°/s*7, Fast2: 180°/s*7
Panning Range ±175°
Tilting range –30° to 210°*8
Quietness NC35 or less
Supported Operating Systems and Web Browsers*9
Supported Operating Systems and Web Browsers Windows Microsoft® Windows® 10 Windows® Internet Explorer® 11 (64‑bit/32‑bit)
Microsoft Edge Google Chrome
Mac MacOS 10.13/Safari 13, MacOS 10.14/Safari 13
MacOS 10.15/Safari 13, MacOS 10.15/Google Chrome
iPhone / iPad iOS
Safari
iPadOS
Android Android OS
Google Chrome
IP Streaming
Image Streaming Mode JPEG (MJPEG), H.264, H.265, NDI®|HX, High Bandwidth NDI®
Image Resolution 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission Setting (JPEG) Frame Rate: Maximum 30 fps
Image quality (Fine / Normal)
Image Transmission Setting (H.264) Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
Transmission Priority Constant bit rate
Frame rate
Best effort
Frame Rate [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
[50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
Max Bit Rate 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps /
10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps /
51200kbps / 76800kbps
Image Transmission Setting (H.265) Transmission Type Unicast port (AUTO), Unicast port (MANUAL). Multicast port
Frame Rate [60Hz] 30fps, [50Hz] 25fps
Max Bit Rate 8192kbps / 12288kbps / 25600kbps / 51200kbps / 76800kbps
Audio Compression Type AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol IPv6 TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
IPv4 TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Other Function
NDI support NDI® | HX : Included as standard
High Bandwidth NDI®: Included as standard
Tally LED Display Color red / green
General
Power Requirements 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply)
PoE++ IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
(Software authentication (LLDP) is supported)
Current Consumption 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity Ranges 20 % to 90 % (no condensation)
Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
Mass Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket)
Dimensions (W x H x D) 169.2 mm x 204.6 mm x 170.6 mm (6-21/32 inches x 8-1/16 inches x 6-23/32 inches)
(excluding protrusions, cable cover, mount bracket)
Finish AW‑UE100KP/AW‑UE100KPC/AW‑UE100KE/AW‑UE100KED: Black
Controller Supported AW-RP150GJ, AW-RP60GJ
