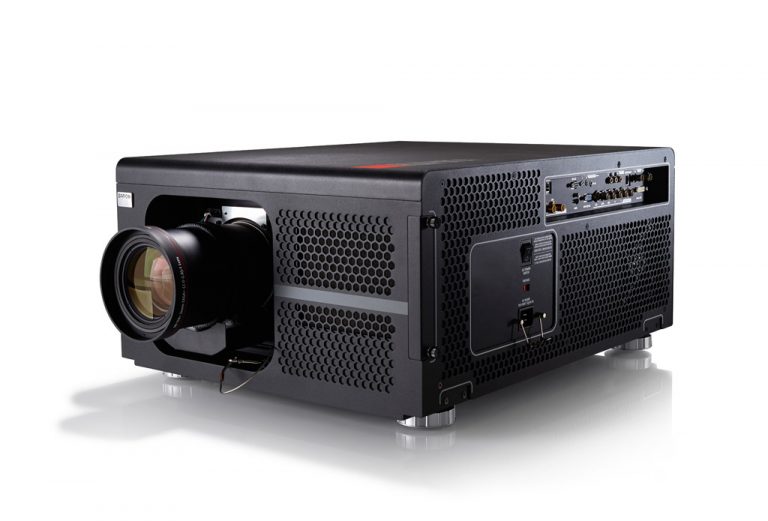

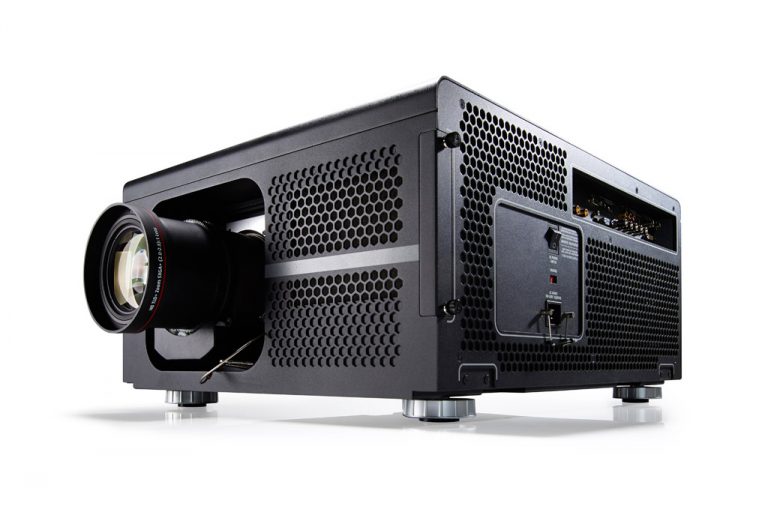

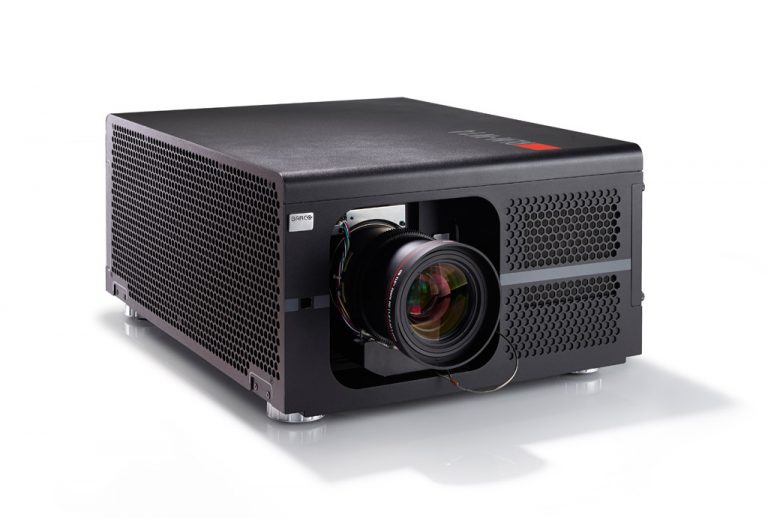

Barco RLM-W14

14,500 Lumens 3-Chip DLP Projector

Barco

Product Highlights

  • Comes with a standard edison plug (NEMA 5-15). L6-30 is available upon request.
  • Frame included with rental
  • WUXGA (1920×1200)
  • Video over a single Cat 5 cable
  • Extended warping and blending
Add to My Quote
Rentex No. RLMW14 | Mfr No. RLM-W14

Featuring a stylish projector design with a very stable lens mount, the RLM-W14 offers Active Stereo 3D and provides video over a single Cat 5 cable (HDBaseTTM).  With its extended warping and blending, rugged chassis and frame (included with your rental) make it the perfect projector for your rental needs.

Operating on a voltage of 110V – 240V, the RLM-W14 is a rugged projector that reduces noise and power consumption. Moreover, its TLD lenses are compatible with the RLM, HDX and HDF projectors.  It’s also standard equipped with BarcoLink, allowing native WUXGA @60 Hz signals to be transmitted between the Barco image processors and projectors via a single BNC cable, for simple and reliable signal distribution.

Geared with three-chip DLP technology, the high-brightness RLM-W14 generates crisp and stable images with rich contrast and sensational colors. It also features a DICOM simulated mode that guarantees accurate grayscales and highly detailed images.

  • (1) BARCO RLM-W14 PROJECTOR
  • (4) RLM Projector Clamp
  • (1) Barco Projector Remote RLM
  • (1) Projector USB Manual
  • (1) 5-15P to C19  Power
  • (1) L630P to C19 Power
  • (1) HDMI to DVI Dongle
  • (4) BARCO RLM and HDQ RIGGING PIN
Projector type WUXGA 3-chip DLP digital projector
Technology 0.96″ DMD™ x3
Resolution 1,920 x 1,200
Brightness 14,500 center lumens / 13,500 ANSI lumens*
Contrast ratio 1,650:1 (standard) / 2,400:1 (CE)
Brightness uniformity 90%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lens type TLD+
Lenses 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.16-1.5:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift Vertical: -70% to +130% / Horizontal: +/-30% on zoom lenses memorized
Color correction P7
Lamps 2x465W
Lamp lifetime 2,000 hours (typical) / 2,500 hours (maximum)
Lamp warranty 120 days, 500 hours
Sealed DLP™ core Standard
Optical dowser Standard
Picture-in-picture Up to two sources simultaneously
Orientation table – ceiling
WARP preset values + custom (RS232)
Integrated web server Yes
3D Dual link DVI with sync in /out BNC
Inputs HDMI (HDCP 1,3); HDBase-T; 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB;YUV); cinch (RGBs, YUV); HSDI/ 3G HDSDI /SDI; 3D DUAL LINK DVI
Input resolutions From NTSC up to UXGA (1,600 x 1,200), including HDTV (1,920 x 1,200)
Max. pixel clock 165Mhz up to 200Mhz
Software tools Projection Toolset + Android app + iOS app
Control Mini-jack + IR, RS232, 12v trigger
Network connection 10/100 base-T, RJ-45 connection
Power requirements 90-240V / 50-60Hz – 1,140W @ 240V, 1,230W @ 110V, STBY less than 2W
Noise level (typical at 25°C/77°F) 46 dB(A) norm, 42dB(A) eco
Operational ambient temperature 0-40°C / 32°-104°F
Operational humidity 0-85% (non condens)
Dissipation BTU max 4,131 BTU/h
Dimensions (WxLxH) 631 x 504 x 270 mm / 24.8 x 19.82 x 10.63 inches
Weight 33.5kg (73.8 lbs)
Shipping Dimensions (LxWxH) 829 x 709 x 437 mm / 32.64 x 27.9 x 17.20 inches
Certifications Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RHoS, WEE
