Barco CSE-200

ClickShare Wireless Presentation System

Barco

Product Highlights

  • Additional 2-Pack ClickShare Buttons Available
  • IEEE 802.11 a/g/n Wireless Standards
  • Connect up to 16 ClickShare Buttons
  • Up to 3840 x 2160 Input Resolutions
Rentex No. PRS1000 | Mfr No. R9861520NA

The CSE-200 ClickShare Wireless Presentation System from Barco consists of two USB-powered devices, each with a ClickShare button, and a base unit. The base unit has a fixed connection to the meeting room’s visualization system, and takes care of all the needed processing. You can simply connect a button to a Windows or Mac computer and click the ClickShare button, and immediately the desktop is wirelessly transferred to the large visualization system. Alternatively, when using a smartphone or tablet (either iOS or Android), a simple app allows you to share content as well. The system’s stability and ease of use, also limits the number of needed interventions by the IT department. You can connect up to 16 ClickShare buttons to the CSM base unit simultaneously.

  • (1) Barco CSE-200 Clickshare Base

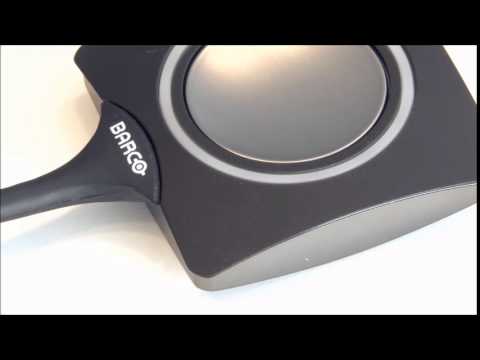

  • (4) Barco Clickshare Button
Wireless Standards IEEE 802.11 a/g/n
Frequency Band 2.4 GHz and 5 GHz
Connectors 1 x HDMI (output) 3 x USB 1 x Ethernet LAN 1 x Audio analog line out (3.5 mm) 1 x S/PDIF
Audio Digital: HDMI and S/PDIF Analog: 3.5 mm line out
Input Resolutions 3840 x 2160 (max)
Output Resolutions 1920 x 1200
Simultaneous Sources on Screen 2
Simultaneous Connections 16
Frame Rate Up to 30 fps
Range Up to 100′ (30.5 m) between ClickShare button and ClickShare base unit
Authentication Protocols WPA2­PSK in stand-alone mode WPA2­PSK or IEEE 802.1X in network integration mode
Compatibility Operating System: Windows 7/8/8.1/10 Mac OS X 10.10/10.11 Android 4.1 and later (ClickShare app) iOS 7.0 and later (ClickShare app)
Power Consumption Operation: 6 W (typical) / 18 W (max) Standby: 2.6 W (ECO standby) / 0.4 W (Deep standby)
Operating Temperature 32 to 104° F (0 to 40° C)
Storage Temperature -4 to 140° F (-20 to 60° C)
Operating Relative Humidity 0 to 85% (non­-condensing)
Storage Relative Humidity 0 to 90% (non­-condensing)
Kensington Security Slot Yes
Certifications FCC, CE
Dimensions Excluding Antennas: 8.1 x 4.5 x 1.8″ (205 x 115 x 45 mm) Including Antennas: 8.1 x 5.9 x 5.3″ (205 x 150 x 135 mm)
Weight 1.32 lb (600 g)
