DataPath DL8

DVI Dual Link Matrix

DataPath

Product Highlights

  • Distribution and signal conditioning of arbitrary DVI source signals
  • Supports any resolution or frame rate that can be used supported in either single or dual-link DVI
  • Supports any resolutions up to and beyond Quad-HD (3840 x 2160) up to pixel clocks of 330 MHz
  • Supports up to 32 screens video walls when used in conjunction with up to 8 Datapath x4 stand alone display wall controllers
Rentex No. XVM0510 | Mfr No. DP-DL8

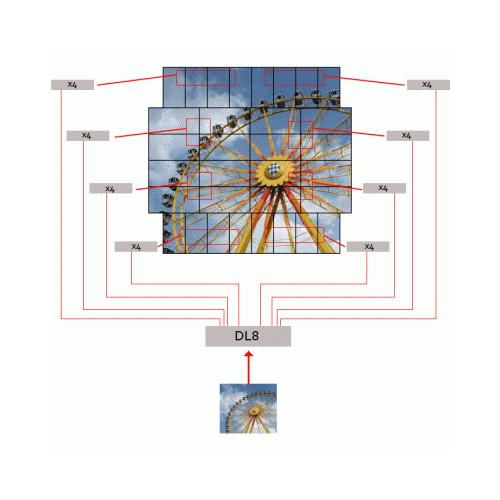

The Datapath dL8 is an eight output distribution amplifier for ultra-high resolution Dual Link DVI signals providing a programmable, flexible and low cost solution for any video wall display. When used in conjunction with multiple Datapath x4 wall controllers, the number of supported outputs increases four times per x4. This allows for the creation of large video walls and can display a single input to a video wall with as many as 100+ screens. Input content can be cropped, sliced, rotated to display unique content on any area of the displays.

One dual-link DVI output, supporting graphics sources with pixel clocks up to 330MHz and resolutions beyond Quad-HD (3480 x 2160), can be delivered to eight outputs on separate DVI-D (dual-link) connectors. This Distribution Amplifier supports up to 65 feet even at full dual-link resolutions due to additional active equalization and re-clocking hardware, allowing convenient location for flexible display designs.

The Datapath dL8 is an eight output distribution amplifier for ultra-high resolution Dual Link DVI signals providing a programmable, flexible and low cost solution for any video wall display. When used in conjunction with multiple Datapath x4 wall controllers, the number of supported outputs increases four times per x4. This allows for the creation of large video walls and can display a single input to a video wall with as many as 100+ screens. Input content can be cropped, sliced, rotated to display unique content on any area of the displays.

One dual-link DVI output, supporting graphics sources with pixel clocks up to 330MHz and resolutions beyond Quad-HD (3480 x 2160), can be delivered to eight outputs on separate DVI-D (dual-link) connectors. This Distribution Amplifier supports up to 65 feet even at full dual-link resolutions due to additional active equalization and re-clocking hardware, allowing convenient location for flexible display designs.

Main Unit
Dimensions 438mm x 40mm x 172mm – 19″ rack mount (1U))
Input Connectors DVI-D (dual-link DVI)
USB (Type B) for host communications
IEC mains power inlet
Outputs Connectors 8 x DVI-D (dual-link DVI)
Front Panel Controls Push button for EDID sampling
Three LED indicator lamps (Power/ Input/ Status) and flashing feedback for USB communications or EDID button press
USB Connection Supports USB 2.0 for programming of input EDID parameters using the Datapath dL8 control application
Operating system support: Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7
Capabilities
Input Capabilities Incorporates TMDS re-clocking equaliser to support up to 20m cables
Programmable EDID to indicate preferred mode
No limit to aspect ratios or frame rates of DVI signals that can be accepted, provided they remain within the dual-link 330MHz specification
Input is not HDCP compatible
Output Capabilities Supports up to 5m cables into standard DVI receiver*
Other
Temperature Operating Temperature: 0-35° C / 32-96°F, internal fan cooling
Storage temperature: -20 to 70°C (-4 to 158°F)
Power Requirements Universal power supply (100-240V) 25W maximum
Relative Humidity 5% to 90% non-condensing
