Gefen 1×2

HDMI Splitter/DA

Mouse roll-over to zoom image.

Product Highlights

Connects two HDMI/DVI displays at the same time to the same video source
Allows simultaneous display
Maintains high resolution video – beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
HDMI and HDCP Compliant
165MHz Video Amplifier Bandwidth

Rentex No. DAHDMI2 | Mfr No. EXT-HDMI-142-BLK

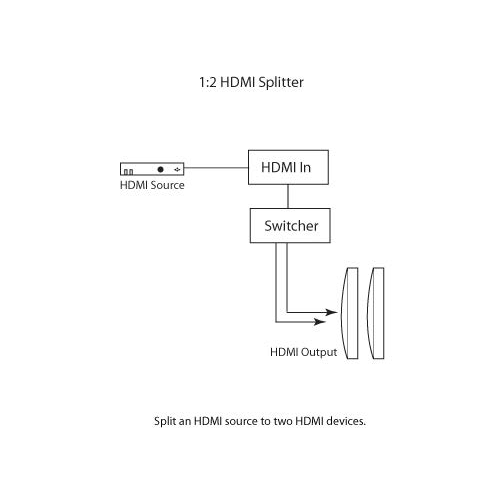

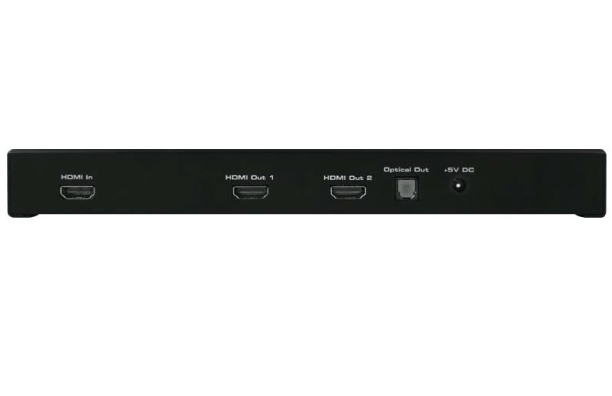

The Gefen DEMO EXT-HDMI-142 1×2 HDMI splitter is a distribution hub that sends the same video output to two HDTV digital displays. It features 1 HDMI AV input and 2 HDMI AV outputs. It is a flexible solution that accommodates multiple displays.

Rentex Spec EXT-HDMI-142-BLK

Gefen EXT-HDMI-142-BLK User Manual

Input	HDMI Digital AV, up to 1080p/1920×1200 with digital audio, on an HDMI connector
Output	HDMI Digital AV x2, up to 1080p/1920×1200 with digital audio, on an HDMI connector
Video Bandwidth	1.65Gbps
Video Signal-to-Noise Ratio	Not Specified by Manufacturer Digital Processes
Differential Phase	Not Specified by Manufacturer Digital Processes
Differential Gain	Not Specified by Manufacturer Digital Processes
Video Control	None
Coupling	Not Specified by Manufacturer Digital Processes
Power Source	5 VDC from an AC Adapter
Dimensions (WxDxH)	10.25 x 4.25 x 1″ (26 x 10.7 x 3.2cm)
Weight	2 lbs (1.8kg)
