Matrox TripleHead2Go

DP Edition External GXM

Matrox

Product Highlights

  • Drive 2 or 3 Displays from 1 Connector
  • DisplayPort (DP) Input/Output
  • Works for DVI/VGA/HDMI/MDP via Adapter
  • Max Resolution Per Monitor: 1920 x 1080 | Total Max Resolution: 5760 x 1080
  • Connects to the Thunderboltâ„¢1, DisplayPort â„¢ or Mini DisplayPort video output of your system
Rentex No. IPTH2GDP | Mfr No. T2G-DP-MIF

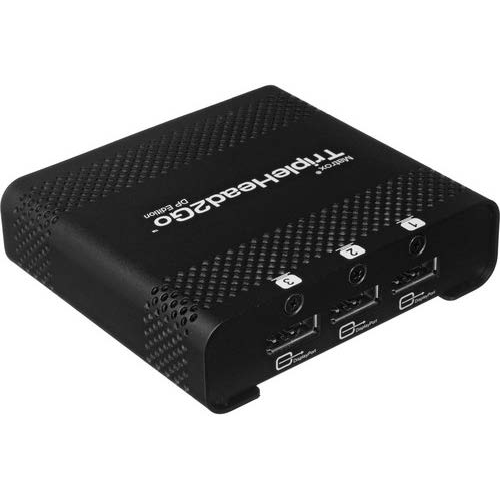

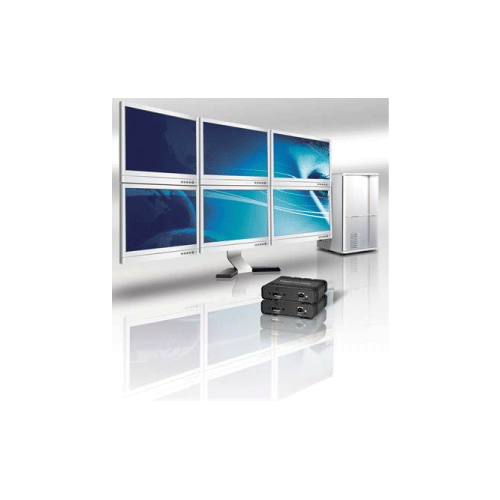

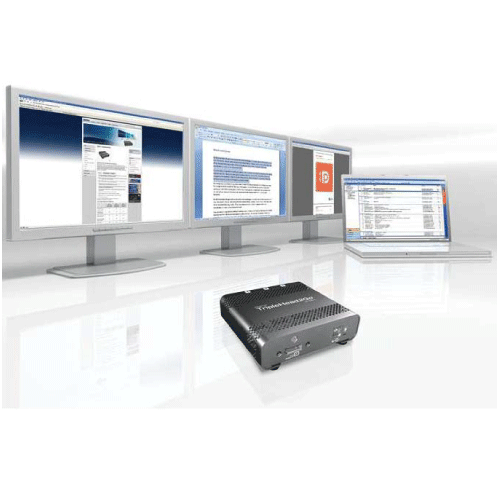

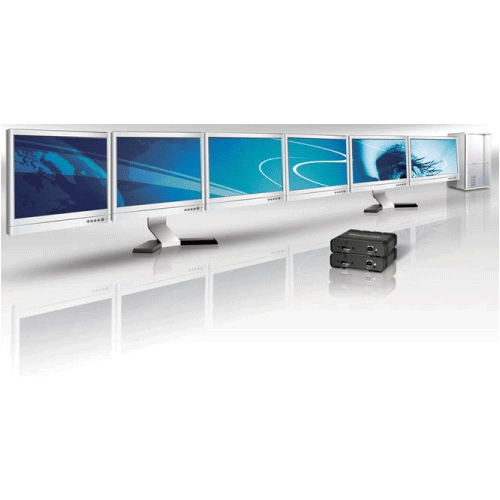

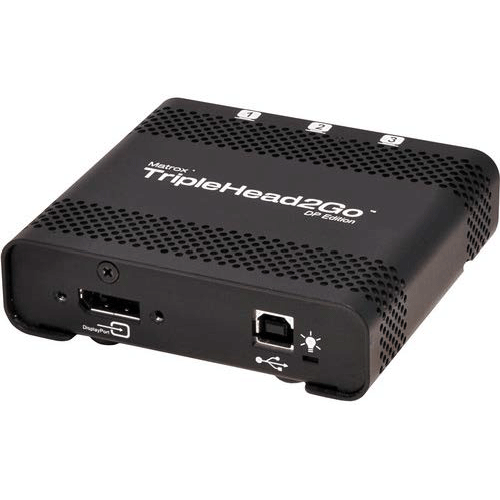

The TripleHead2Go DP Edition External GXM from Matrox is an external Graphics eXpansion Module that lets you drive 3 displays, each at up to 1920 x 1080 resolution, from a single DisplayPort (DP) connector. This allows you to drive 3 displays from a laptop or from a desktop that only has one DisplayPort. You can also drive the 3 displays at 1680 x 1050 resolution each, or you can drive just 2 at 1920 x 1200 resolution each. The module allows you to drive displays using DVI, VGA, HDMI and Mini-DP outputs, provided you have the required adapter cables (not included). You can even connect a second TripleHead2Go to your graphics hardware to support up to 6 monitors at a time!

Matrox part number T2G-DP-MIF
Maximum DisplayPort Resolution 1 5760×1080 (3x 1920×1080) 2
3840×1200 (2x 1920×1200)
Maximum DVI Resolution 1 5760×1080 (3x 1920×1080) 2
3840×1200 (2x 1920×1200)
Maximum VGA Resolution 1 4080×768 (3x 1360×768)
3840×1080 (2x 1920×1080)
Input connector 1 x DisplayPort input
Output connectors 3 x DisplayPort outputs
Power USB and DisplayPort for power
Dimensions 3.5″ x 3.8″ x 1.1″  (8.9cm x 9.7cm x 2.8cm)
Clone Mode Yes
Stretched Desktop Support Yes
Surround Gaming Yes
Matrox Monitor Bezel Management Yes – Available under Windows only
PowerDesk Software Yes
Hardware included
  • One 2-foot DisplayPort to DisplayPort input cable
  • One Mini DisplayPort to DisplayPort input cable
  • One USB cable
  • Getting started CD
Multi-unit support Yes – Available under Windows only
System Requirements
  • Single DisplayPort or Mini DisplayPort video output, or Thunderbolt port4, on a compatible system
  • Powered USB connector
  • Display Driver supporting 3072 x 768 or higher resolution

Verify your system compatibility

Supported Operating Systems Microsoft® Windows® 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit), Windows Vista® (32/64bit), Windows XP (32/64bit), Windows Server® 2012 (32/64bit), Windows Server 2003/2008 (32/64bit), Mac® OS X® El Capitan (10.11), Mac OS X Mavericks (10.9), Mountain Lion (10.8), Mac OS X Lion (10.7), Mac OS X (10.6) and Linux® 3
